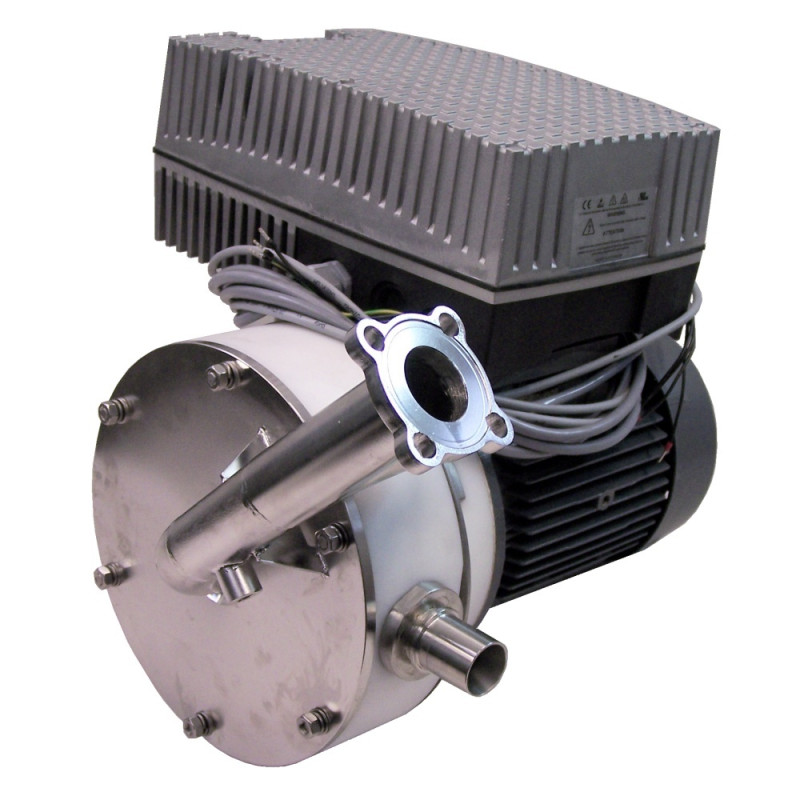

Main Pump Assembly IR56 No. 473 and Higher

Type: 105793
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1686

* Main Pump Assembly IR 56 Facelift No. 473 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Main Pump Assembly IR56 No. 473 and Higher

Type: 105793
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1686

* Main Pump Assembly IR 56 Facelift No. 473 and higher:
--105690 Housing
--105694 socket
--105574 wheel
-- F441546 Sealing set
--F22888 Washer
-- F21260 Spring lock washer
-- F20259 Hexagonal nut
-- 105575 O-ring
--105697 Profile
-- 107631 Lid
-- 105695 socket
--F20449 Hexagonal bolt
-- 105789 Disc
-- F26379 Spring lock washer
-- F22919 Hexagonal bolt
-- F24237 O-ring
-- F440360 Starting sheet
-- 105692 bushing
--F248604 O-ring
-- 105693 Flange
--F20453 Countersunk bolt
-- 105698 plate / sheet
-- F24802 Seal
-- F21128 O-ring
-- F240081 Ring
--F240357 Nut
-- F240358 Cap nut
--105578 Nut
--F21196 Cylinder head screw
--F24481 Cylinder head screw
-- F21045 Washer
-- 106720 Programmed FC 4kW
--F29035 Motor
-- F20698 Cable
-- 106619 Cable
-- 106133 Cable FC value main pump
--106488 Resistance thermometer IR
-- F29057 Cable gland
-- F20948 Cable gland
-- F147522 Sticker

Main Pump Assembly IR56 No. 473 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	105690	Housing	Ø 250 x 119	1
2	105694	socket	Ø 25 x Ø 55 x 75	1
3	105574	wheel	Ø 185 x 68.5	1
4	F441546	Sealing set	IR 28/56 / LR 1	1
5	F22888	Washer	DIN125 A 8,4	10
6	F21260	Spring lock washer	DIN127 B 8	10
7	F20259	Hexagonal nut	DIN934 M 8	6
8	105575	O-ring	Ø190 x 5	1
9	105697	Profile	185 x 168,5 x 70 x 5	1
10	107631	Lid	IR 56	1
11	105695	socket	Ø 9,5 x Ø 40 x 63,5	1
12	F20449	Hexagonal bolt	DIN933 M 8 x 30	4
13	105789	Disc	IR 56	1
14	F26379	Spring lock washer	DIN127 B 10	4
15	F22919	Hexagonal bolt	DIN933 M10 x 45	4
16	F24237	O-ring	Ø 45 x 2,5	1
17	F440360	Starting sheet	IR 28/56	2
18	105692	bushing	Ø 25 x Ø 80 x 22	1
19	F248604	O-ring	Ø 62 x 3	1
20	105693	Flange	Ø 37 x Ø 80 x 11	1
21	F20453	Countersunk bolt	DIN7991 M 6 x 20	3
22	105698	plate / sheet	60 x 36 x 10	4
23	F24802	Seal	Ø 130 x Ø 200 x 2	1
24	F21128	O-ring	Ø 30 x 3	1
25	F240081	Ring	Ø 15,2 x Ø 27 x 3	1
26	F240357	Nut	M 12 x 1 x Ø 26,5 x 7	1
27	F240358	Cap nut	M 12 x 1	1
28	105578	Nut	DIN6923 M16	6
29	F21196	Cylinder head screw	DIN84 M 5 x 16	2
30	F24481	Cylinder head screw	DIN84 M 5 x 20	2
31	F21045	Washer	DIN125 A 5,3	2
32	106720	Programmed FC 4kW	E82MV402_4B230	1
33	F29035	Motor	VAF90L/2D-12	1
34	F20698	Cable	ÖZ-J 4 x 1.5 mm²	3.3m
35	106619	Cable	Liycy 7 x 0.5 mm²	2.8m
36	106133	Cable FC value main pump	IR 28/56 Facelift	1
37	106488	Resistance thermometer IR	PT100 DIN EN 60751	1
38	F29057	Cable gland	M 25 x 1.5	1
39	F20948	Cable gland	M 16 x 1.5	2
40	F147522	Sticker	arrow	2
