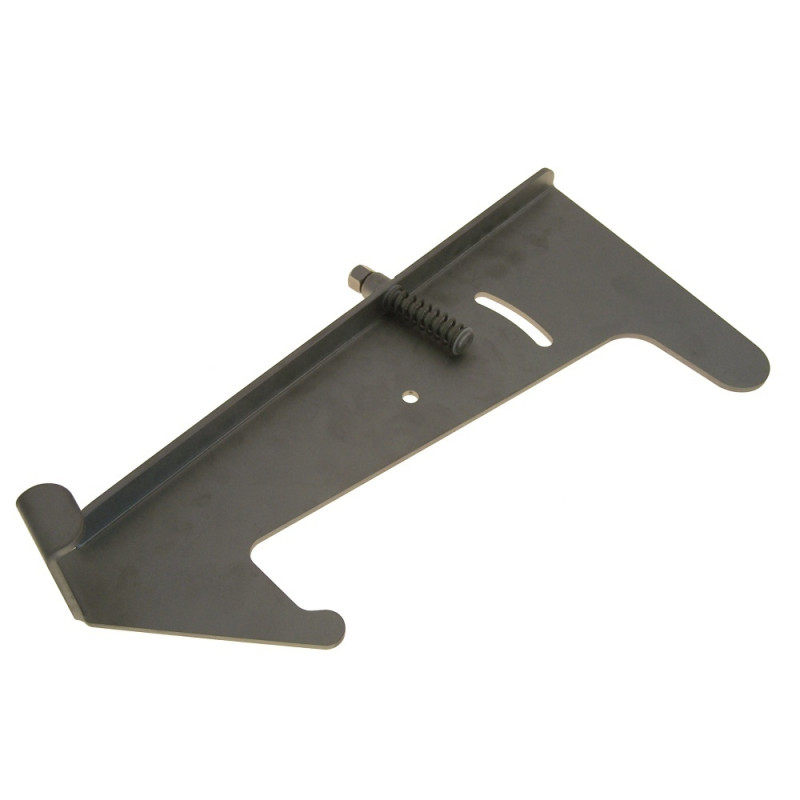

Locking Device Exploded View for Meat Dicing Machine SR3 with no. 35 and higher
Pos No. | Part No. | Description | Add Info | Required | |
1 | 104670 | locking device | SR 3 | 1 | |
2 | F28727 | Bolt | M10 x 90 | 1 | |
3 | F245222 | Ring | Ø 10,5 x Ø 19 x 4,5 | 2 | |
4 | F245225 | Pressure spring | d2.0 x De18 x 68 | 1 | |
5 | F20811 | Cap nut | DIN917 M 10 | 1 |
