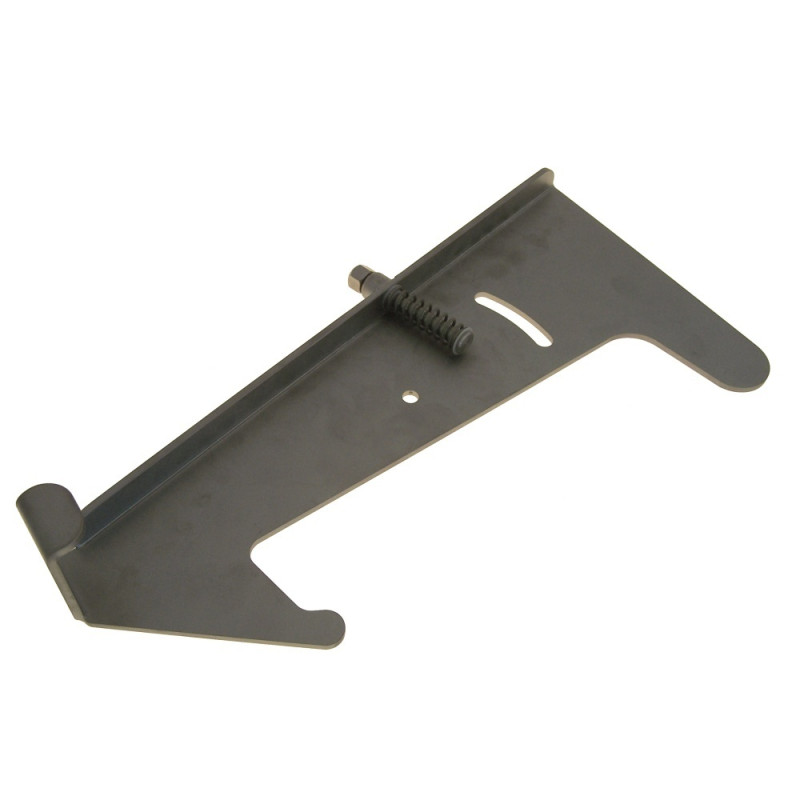

Locking Device Exploded View SR3 Dicer No. 70 and Higher

Type: F445221
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1054

Note: Shipping to be Determined.

* Locking Device Exploded View SR3 Lifting unit for No. 70 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Locking Device Exploded View SR3 Dicer No. 70 and Higher

Type: F445221
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1054

Note: Shipping to be Determined.

* Locking Device Exploded View SR3 Lifting unit for No. 70 and higher:
--104670 locking device
--F28727 Bolt
--F245222 Ring
--F245225 Pressure spring
--F20811 Cap nut

Locking Device Exploded View for Meat Dicing Machine SR3 with no. 70 and higher

Pos No.	Part No.	Description	Add Info	Required
1	104670	locking device	SR 3	1
2	F28727	Bolt	M10 x 90	1
3	F245222	Ring	Ø 10,5 x Ø 19 x 4,5	2
4	F245225	Pressure spring	d2.0 x De18 x 68	1
5	F20811	Cap nut	DIN917 M 10	1

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Locking Device Exploded View for Meat Dicing Machine SR3 with no. 70 and higher

Pos No.	Part No.	Description	Add Info	Required
1	104670	locking device	SR 3	1
2	F28727	Bolt	M10 x 90	1
3	F245222	Ring	Ø 10,5 x Ø 19 x 4,5	2
4	F245225	Pressure spring	d2.0 x De18 x 68	1
5	F20811	Cap nut	DIN917 M 10	1
