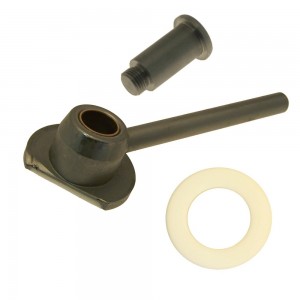

Lock Exploded View Dicer SR3 Dicer No. 70 and Higher
Pos No. | Part No. | Description | Add Info | Required | |
1 | F42281 | Lock | SR 3 / IR 112 | 1 | |
2 | F21480 | Ring | Ø 22,1 x Ø 30 x 1 | 1 | |
3 | F21492 | bolt | Ø 30 x 54 | 1 |
Pos No. | Part No. | Description | Add Info | Required | |
1 | F42281 | Lock | SR 3 / IR 112 | 1 | |
2 | F21480 | Ring | Ø 22,1 x Ø 30 x 1 | 1 | |
3 | F21492 | bolt | Ø 30 x 54 | 1 |
