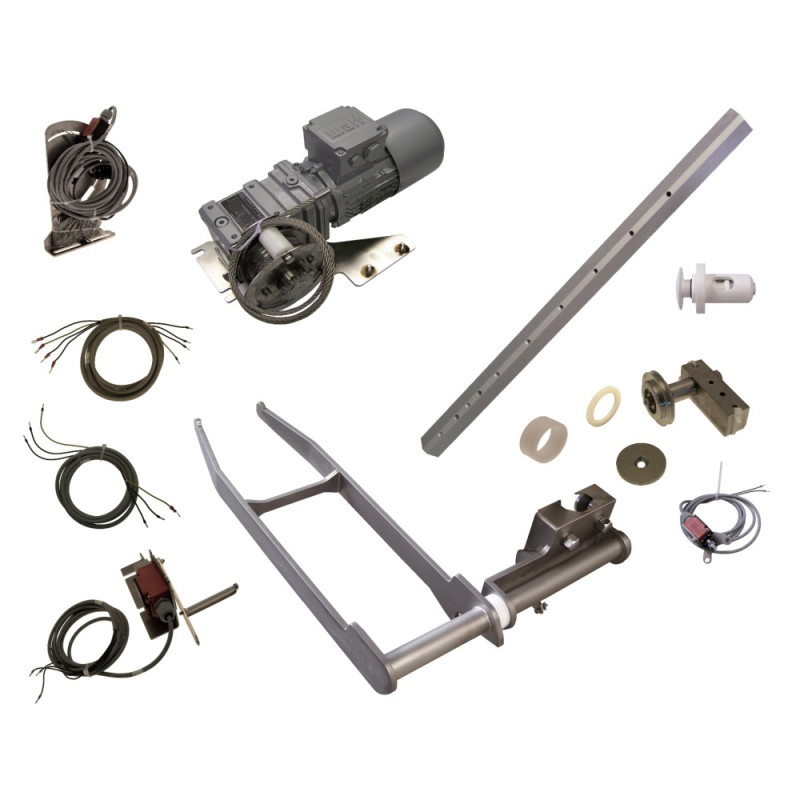

Lifting aid Assembly Ruhle IR56 No. 473 and Higher

Type: 106152
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1710

* Lifting aid Assembly IR 56 Facelift No. 473 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Lifting aid Assembly Ruhle IR56 No. 473 and Higher

Type: 106152
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1710

* Lifting aid Assembly IR 56 Facelift No. 473 and higher:
--F456311 Fork
--F440955 Guide
-- F27693 Washer
-- F240571 Guide
--F20693 Hexagonal bolt
--F26379 Spring lock washer
-- F22907 Disc
-- F42198 baffle
--F440961 drive
-- F443161 Push button
-- 106151 bracket with cable
-- 106147 Switch cable-breakage safety unit
--F29347 Ring
-- F22125 Ring
-- F240003 Disc
--F22890 Countersunk bolt
-- F20258 Washer
--F24031 Spring lock washer
--F20203 Hexagonal nut
-- F27786 Cylinder head screw
--F20147 Hexagonal nut
--F26600 Disc
--F20259 Hexagonal nut
--F21260 Spring lock washer
-- 106150 Switch unit
-- 106117 Cable for lifiting aid drive
-- 106116 Cable brake recitfier lifting

Lifting aid Assembly Ruhle IR56 No. 473 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F456311	Fork	IR 56	1
2	F440955	Guide	IR 56	1
3	F27693	Washer	DIN125 A 10,5	8
4	F240571	Guide	950 x 57.2 x 54.2	1
5	F20693	Hexagonal bolt	DIN933 M10 x 35	6
6	F26379	Spring lock washer	DIN127 B 10	12
7	F22907	Disc	Ø 10,5 x Ø 35 x 3	4
8	F42198	baffle	IR 56	1
9	F440961	drive	IR 56	1
10	F443161	Push button	IR 56	1
11	106151	bracket with cable	IR 56 S2	1
12	106147	Switch cable-breakage safety unit	IR 56	1
13	F29347	Ring	Ø 50,5 x Ø 70 x 30	1
14	F22125	Ring	Ø 50 x Ø 70 x 5	1
15	F240003	Disc	Ø 10,5 x Ø 70 x 6	1
16	F22890	Countersunk bolt	DIN7991 M10 x 30	1
17	F20258	Washer	DIN125 A 6,4	3
18	F24031	Spring lock washer	DIN127 B 6	3
19	F20203	Hexagonal nut	DIN127 B 6	3
20	F27786	Cylinder head screw	DIN912 M10 x 90	2
21	F20147	Hexagonal nut	DIN934 M 10	4
22	F26600	Disc	Ø 8,5 x Ø 20 x 2	2
23	F20259	Hexagonal nut	DIN934 M 8	24
24	F21260	Spring lock washer	DIN127 B 8	2
25	106150	Switch unit	IR 56	1
26	106117	Cable for lifiting aid drive	IR 56 Facelift	1
27	106116	Cable brake recitfier lifting	IR 56 Facelift	1
