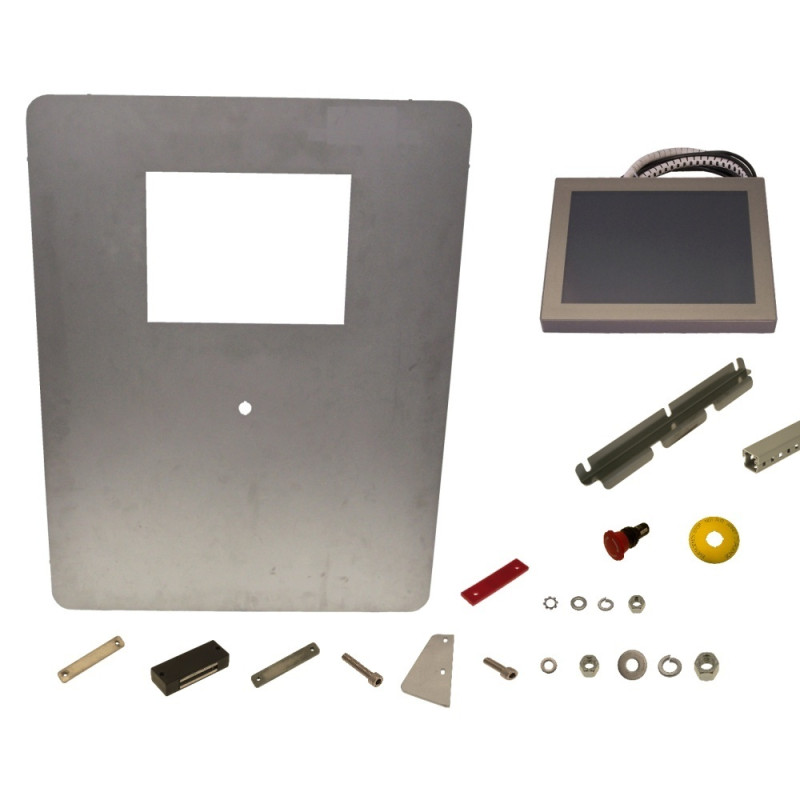

Lid Complete 3 Ruhle SR3 Dicer No. 70 and Higher

Type: 106574et
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 973

Note: Shipping to be Determined.

* Lid Complete 3 SR3 Lifting unit for No. 70 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Lid Complete 3 Ruhle SR3 Dicer No. 70 and Higher

Type: 106574et
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 973

Note: Shipping to be Determined.

* Lid Complete 3 SR3 Lifting unit for No. 70 and higher:
--F42353 Lid
--F29191 plate / sheet
--F29189 Solenoid
--F245662 plate / sheet
--F245165 Cylinder head screw
--F29388 Guide
--F25848 Cylinder head screw
--F21045 Washer
-- F21028 Hexagonal nut
--105996 Display
--F254711 Profile
--F26600 Disc
--F21260 Spring lock washer
--F20259 Hexagonal nut
-- F22172 Cloth
--F28732 lock washer
--F20258 Washer
--F24031 Spring lock washer
-- F20203 Hexagonal nut
--F244731 Cable duct
--107083 Push button - emrgency stop
--F251206 Sticker: Emergency Stop

Lid Complete 3 for Meat Dicer with No. 70 and higher

Pos No.	Part No.	Description	Add Info	Required
1	F42353	Lid	SR 3	1
2	F29191	plate / sheet	70 x 12 x 3	5
3	F29189	Solenoid	67 x 25 x 16	5
4	F245662	plate / sheet	70 x 12 x 3	5
5	F22173	Cylinder head screw	DIN912 M 5 x 25	10
6	F29388	Guide	123.7 x 64 x 5	2
7	F25848	Cylinder head screw	DIN912 M 5 x 16	4
8	F21045	Washer	DIN125 A 5,3	8
9	F21028	Hexagonal nut	DIN934 M 5	4
10	105996	Display	MSC	1
11	F254711	Profile	35 x 47,5 x 370 x 2,5	2
12	F26600	Disc	Ø 8,5 x Ø 20 x 2	6
13	F21260	Spring lock washer	DIN127 B 8	6
14	F20259	Hexagonal nut	DIN934 M 8	6
15	F22178	Cloth	80 x 20 x 4	1
16	F28732	lock washer	DIN6797-A ø 6,4	2
17	F20258	Washer	DIN125 A 6,4	3
18	F24031	Spring lock washer	DIN127 B 6	2
19	F20203	Hexagonal nut	DIN934 M 6	3
20	F244731	Cable duct	19 x 19 x 2000	1
