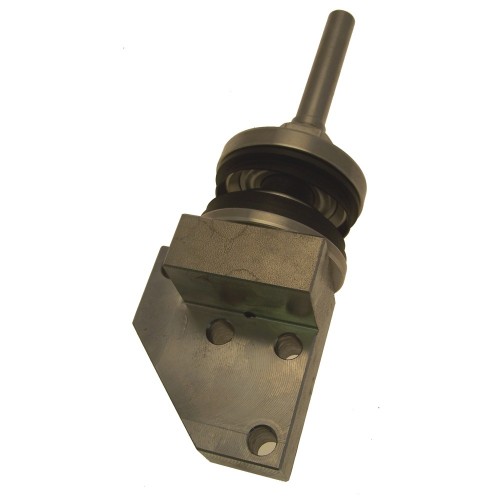

Lever Exploded View - SR2 Turbo No. 74 and higher

Type: F42313
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 742

Note: Shipping to be Determined.

* Lever Exploded View SR2 Turbo No. 74 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Lever Exploded View - SR2 Turbo No. 74 and higher

Type: F42313
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 742

Note: Shipping to be Determined.

* Lever Exploded View SR2 Turbo No. 74 and higher:
--F26890 Bracket
--F26891 Shaft
--F27441 Housing
--F27442 Sealing ring
--F26892 Axial Grooved Ball Bearing
--F26896 Housing
--F26897 Hexagonal nut
--F25069 Axial Grooved Ball Bearing

Pos. No.	Part No.	Description	Add. Info	Required
1	F26890	Bracket	85 x 80 x 60	1
2	F26891	Shaft	Ø 30 x 170	1
3	F27441	Housing	Ø 22 x Ø 70 x 11	1
4	F27442	Sealing ring	Ø 54 x Ø 64 x 5,5	2
5	F26892	Axial Grooved Ball Bearing	DIN711 51205	1
6	F26896	Housing	Ø 22 x Ø 70 x 15	1
7	F26897	Hexagonal nut	DIN439 M 20 x 1,5	2
8	F25069	Axial Grooved Ball Bearing	DIN711 51106	1

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Pos. No.	Part No.	Description	Add. Info	Required
1	F26890	Bracket	85 x 80 x 60	1
2	F26891	Shaft	Ø 30 x 170	1
3	F27441	Housing	Ø 22 x Ø 70 x 11	1
4	F27442	Sealing ring	Ø 54 x Ø 64 x 5,5	2
5	F26892	Axial Grooved Ball Bearing	DIN711 51205	1
6	F26896	Housing	Ø 22 x Ø 70 x 15	1
7	F26897	Hexagonal nut	DIN439 M 20 x 1,5	2
8	F25069	Axial Grooved Ball Bearing	DIN711 51106	1
