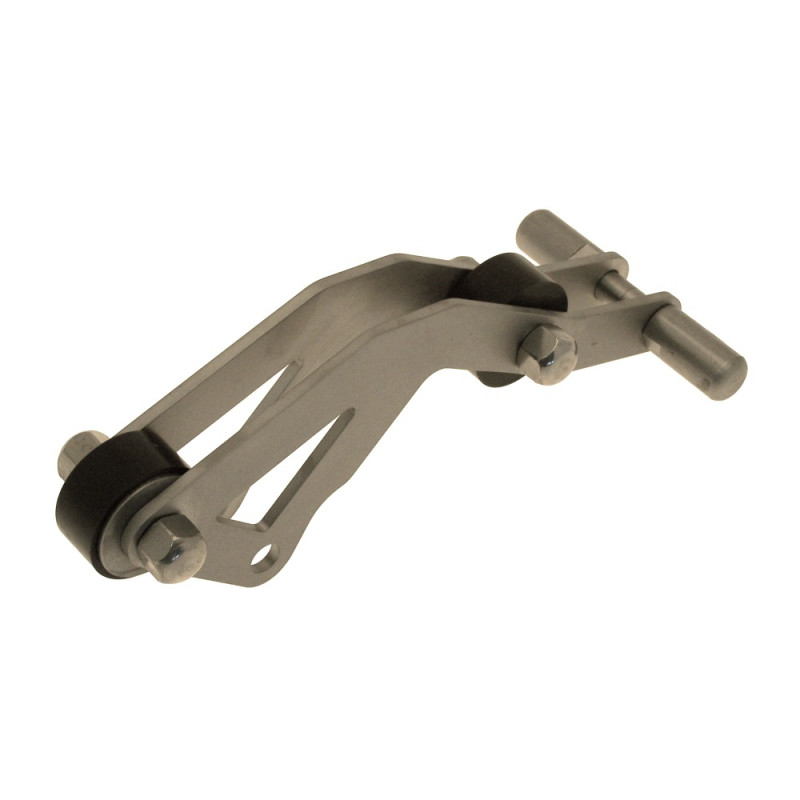

Lever Exploded View 2 IR56 Injector No. 473 and Higher

Type: 105760
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1665

* Lever Exploded View 2 IR 56 Facelift No. 473 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Lever Exploded View 2 IR56 Injector No. 473 and Higher

Type: 105760
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1665

* Lever Exploded View 2 IR 56 Facelift No. 473 and higher:
--105664 plate / sheet
--105666 Shaft
--F20930 Threaded pin
-- F41724b Ring
-- F20812 Cap nut
--105570 Rubber pad
-- 105972 Disc
--105971 bolt

Lever Exploded View 2 IR56 Injector No. 473 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	105664	plate / sheet	229 x 132 x 5	2
2	105666	Shaft	Ø 20 x 57,5	2
3	F20930	Threaded pin	DIN551 M 8 x 30	1
4	F41724b	Ring	Ø 12,2 x Ø 20 x 2	2
5	F20812	Cap nut	DIN917 M 12	4
6	105570	Rubber pad	Ø 12 x Ø 45 x 20	2
7	105972	Disc	Ø 12,1 x Ø 40 x 2	2
8	105971	bolt	Ø 12 x 53	2

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Lever Exploded View 2 IR56 Injector No. 473 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	105664	plate / sheet	229 x 132 x 5	2
2	105666	Shaft	Ø 20 x 57,5	2
3	F20930	Threaded pin	DIN551 M 8 x 30	1
4	F41724b	Ring	Ø 12,2 x Ø 20 x 2	2
5	F20812	Cap nut	DIN917 M 12	4
6	105570	Rubber pad	Ø 12 x Ø 45 x 20	2
7	105972	Disc	Ø 12,1 x Ø 40 x 2	2
8	105971	bolt	Ø 12 x 53	2
