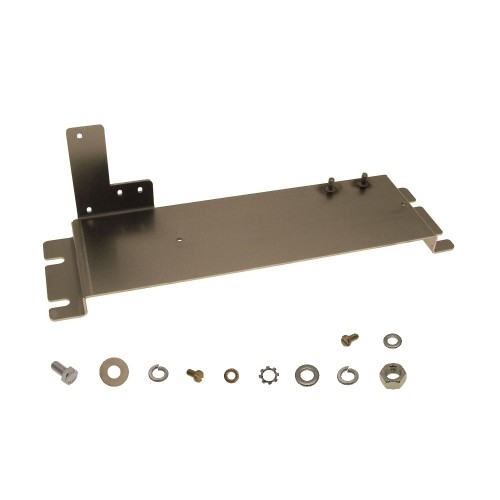

Konsole Assembly
Pos No. | Part No. | Description | Add info | Required | |
1 | 107595 | Konsole | alle Typen | 1 | |
2 | F20163 | Sechskantschraube | DIN933 M 5 x 12 | 2 | |
3 | 102631 | Scheibe | Ø 6,5 x Ø 15 x 3 | 2 | |
4 | F20260 | Federring | DIN127 B 5 | 2 | |
5 | F20570 | Zylinderschraube | DIN84 M 4 x 8 | 2 | |
6 | F29183 | U-Scheibe | DIN125 A 4,3 | 2 | |
7 | F28732 | Zahnscheibe | DIN6797-A ø 6,4 | 2 | |
8 | F20258 | U-Scheibe | DIN125 A 6,4 | 2 | |
9 | F24031 | Federring | DIN127 B 6 | 2 | |
10 | F20203 | Sechskantmutter | DIN934 M 6 | 2 | |
11 | F21049 | Zylinderschraube | DIN84 M 3 x 6 | 1 | |
12 | F21048 | U-Scheibe | DIN125 A 3,2 | 1 |
