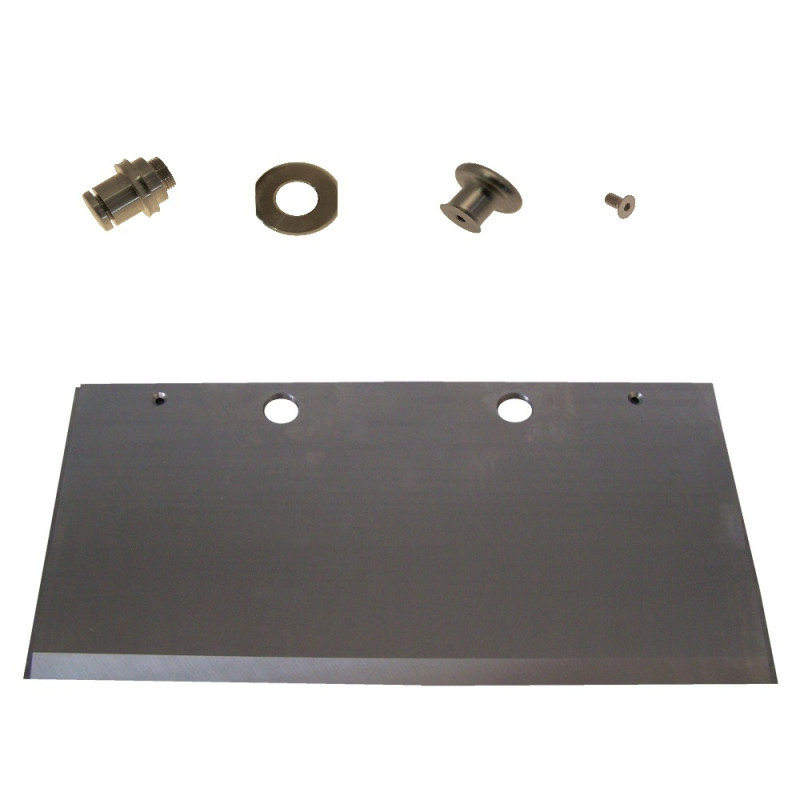

Knife exploded view Ruhle SR3 Dicer No. 35 and Higher

Knife exploded view Ruhle SR3 Dicer No. 35 and Higher

Type: F41849
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1132
Note: Shipping to be Determined.
* Knife exploded view SR3 Lifting unit No. 35 and higher:

Print

Knife exploded view Ruhle SR3 Dicer No. 35 and Higher

  Pos No. Part No. Description Add Info Required
F28488 1 F28488 Knife 512 x 245 x 8 1
F28489 2 F28489 bolt Ø 35 x 45 2
F28490 3 F28490 Nut M 20 x 1,5 x Ø 40 x 7 2
F26821 4 F26821 handle Ø 39 x 30 2
F20453 5 F20453 Countersunk bolt DIN7991 M 6 x 20 2
