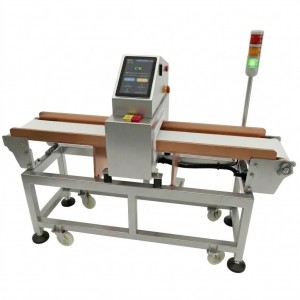

LCD Screen High Sensitivity All-Metal Detector

‹

›

LCD Screen High Sensitivity All-Metal Detector

Ships from: FOB Brampton, ON Canada (O)
U/M: Each
Stock: On Order
Shipping Dimension: 66 X 35 X 47
Shipping Weight: 860 lbs
HTS Code:8543709100
CM: 3007

Financing Available

Note: Shipping to be determined.

* Metal detector product details :

* Reject Systems (choose one):

		Red Light Stop on Reject with Alarm
		Pusher Reject
		Flap reject or Drop down Reject
		Air Jet Push Reject

* Inspection Sensitivity Tunnel:

* Product Flow Direction:

* Metal detector motor speed:

* Electrical:

Brochure

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

LCD Screen High Sensitivity All-Metal Detector

Location: FOB Brampton, ON Canada (O)
U/M: Each
Stock: On Order
Shipping Dimension: 66 X 35 X 47
Shipping Weight: 860 lbs
HTS Code:8543709100
CM Product Code: 3007

Financing Available

Note: Shipping to be determined.

* Metal detector product details :

* Reject Systems (choose one):

		Red Light Stop on Reject with Alarm
		Pusher Reject
		Flap reject or Drop down Reject
		Air Jet Push Reject

* Inspection Sensitivity Tunnel:
--A
--B
--C
--D
--E
--F

* Product Flow Direction:
--Facing Touch Screen (Left to Right)
--Facing Touch Screen (Right to Left)

* Metal detector motor speed:
--Fixed Speed 25 meters/min
--Varaiable Speed

* Electrical:
--110V 60Hz 1ph
--220V 60Hz 1Ph

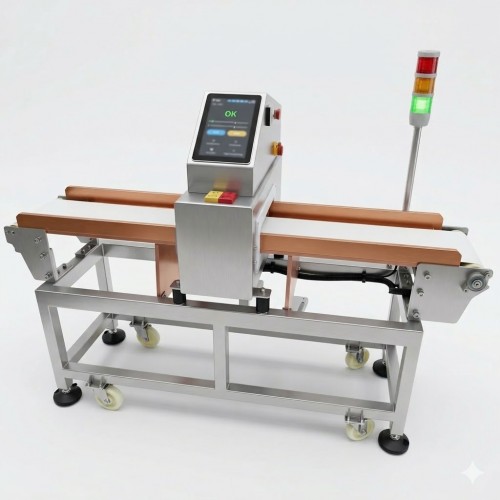

Commercial Food LCD Screen High Sensitivity All-Metal Detector

Scope of Application
This is mainly used for detecting the metal chips inside any products such as poultry, seafood, ice-cream, frozen food, sugar, tea, pharmaceutical, health care products, etc.

Technical features:

1.Adopted DSP advanced technology (DSP Chip)

2.Record data 52 kinds of different products

3.Program new products and save data in system

4.Phase tracking function restricts the product effect and read high stable detection sensitivity

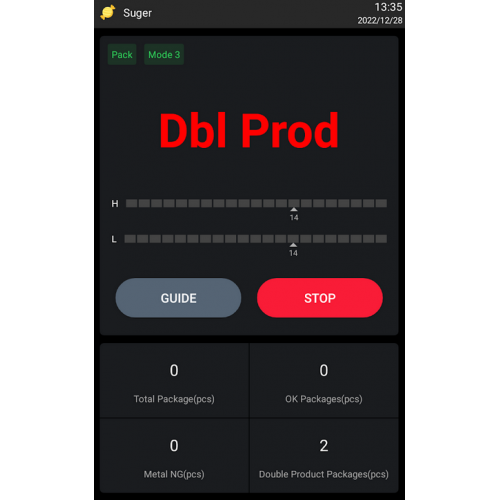

5.Digital lcd screen operation

6.Strong recommended for seafood, meat, salt, and other high-effect products

Technical specifications:

Tunnel size: (above belt) based on chart A-F

Basic sensitivity (not loaded products): Based on chart selection A-F

Conveyor length standard 1,500mm, belt width 360mm

Conveyor height above ground to belt standard 750mm + - foot cup 100mm with moveable wheels

Rejection system: Audible with red light warning alarm, belt stopped automatically.

Belt speed: 25 meters/min fixed or optional variable speed.

Flow direction: from Right to Left (facing the operation panel) or opposite.

Materials: white PVC belt, tunnel housing 304 grade stainless steel, conveyor 201 grade stainless steel

Operation System and Panel Language: English

Spare parts: calibration metal test cards 1 set

Power supply: Voltage 220VAC, 60Hz, 1 Phase, American plug

PKG dimension: L1780 x W1100 x H1250 mm, 2.45CBM, G.W 320KG

Inspection tunnel size & Sensitivity ability chart:

	A	B	C	D	E	F
Opening Width	300 mm	400 mm	400 mm	500 mm	500 mm	600 mm
Opening Height	100 mm	120 mm	150 mm	200 mm	250 mm	300 mm
Sensitivity of Ferrous	Φ0.8mm	Φ0.8mm	Φ1.0mm	Φ1.0mm	Φ1.2mm	Φ1.8mm
Sensitivity of Non- Ferrous	Φ1.0mm	Φ1.2mm	Φ1.5mm	Φ2.0mm	Φ2.0mm	Φ2.5mm
Sensitivity of SUS 304	Φ1.8mm	Φ2.0mm	Φ2.0mm	Φ2.5mm	Φ2.5mm	Φ 3.0mm

TIP: The closer the window is to actual product the better the sensitivity.
