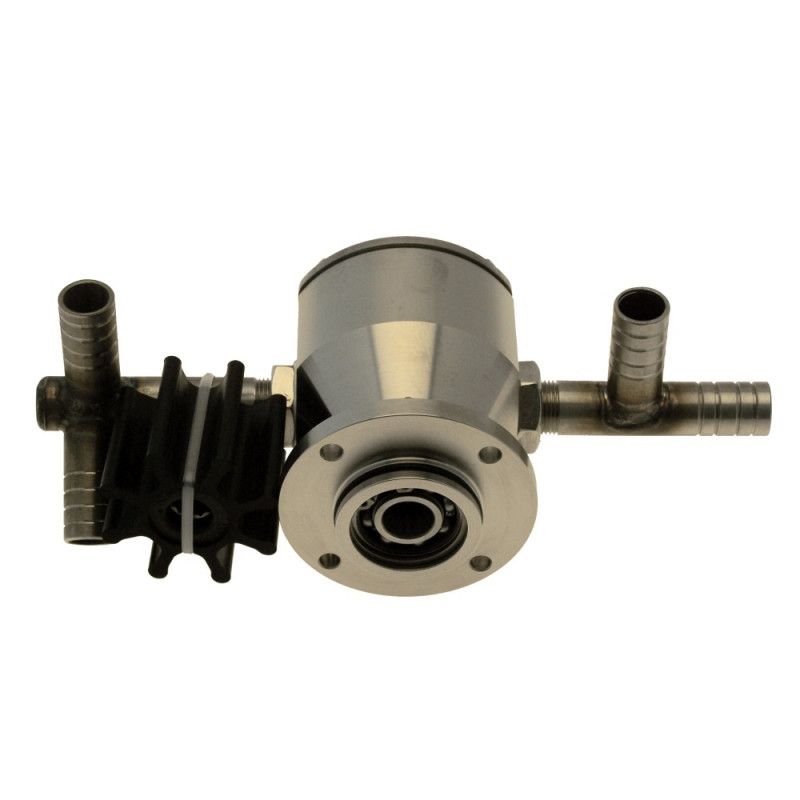

Impeller Pump Exploded View Ruhle PR10 Injector
Pos No. | Part No. | Description | Add Info. | Required | |
1 | F247398 | Housing | Ø 16,4 x Ø 89 x 97,8 | 1 | |
2 | F447402 | Tube | PR 8 - 20 | 1 | |
3 | F447399 | Tube | PR 8 - 20 | 1 | |
4 | F248182 | Lid | Ø 90 x 4 | 1 | |
5 | F20155 | Impeller M 401 | M401 | 1 | |
6 | F41281 | Sealing set | VA-pump M 401 | 1 | |
7 | F20163 | Hexagonal bolt | DIN933 M 5 x 12 | 4 | |
8 | F26897 | Hexagonal nut | DIN439 M 20 x 1,5 | 2 |
