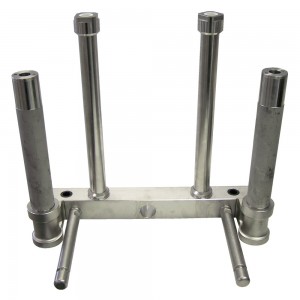

Housing Exploded View IR56 Injector 105767

Type: 105767
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1517

* Housing Exploded View IR 56 Facelift:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Housing Exploded View IR56 Injector 105767

Type: 105767
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1517

* Housing Exploded View IR 56 Facelift:
--105682 Traverse
--F28447 Cylindrical pin
-- F245075 Shaft
--F245052 Housing
--F21087 Cylinder head screw
--F29276 bushing
-- F245071 Nut
-- F29275 Guide
-- F240200 Ring
--F29278 Pressure spring
--F29277 bushing
--F240152 Nut
-- F245074 Tube
--F240148 Flange
-- F245076 Disc
--105571 Slide bearing
--F29145 Slide bearing
--F29213 Take-up ring
--F29195 Grooved ring
--F243724 Nut

Housing Exploded View Ruhle IR56

Pos No.	Part No.	Description	Add Info	Required
1	105682	Traverse	60 x 60 x 560	1
2	F28447	Cylindrical pin	ISO2338 - Ø 8 m6 x 20	4
3	F245075	Shaft	Ø 30 x 283	2
4	F245052	Housing	75 x 100 x 111	2
5	F21087	Cylinder head screw	DIN912 M10 x 60	8
6	F29276	bushing	Ø 25,5 x Ø 37,6 x 47,2	2
7	F245071	Nut	M 40 x 1,5 x Ø 55 x 17	2
8	F29275	Guide	Ø 40 x 4 coil x 480	2
9	F240200	Ring	Ø 20,5 x Ø 30 x 10	2
10	F29278	Pressure spring	d 3.5 x De 28 x Lk 480	2
11	F29277	bushing	Ø 20,5 x Ø 37,6 x 65	2
12	F240152	Nut	Ø 30 x Ø 55 x 40	2
13	F245074	Tube	Ø 55 x 5 x 335,5	2
14	F240148	Flange	M48 x 1,5 x Ø 53,8 x 25	2
15	F245076	Disc	Ø 18 x 4	8
16	105571	Slide bearing	PFM-2023-30	2
17	F29145	Slide bearing	JUM-02-40	2
18	F29213	Take-up ring	Ø 42 x Ø 60 x 10	2
19	F29195	Grooved ring	40 x 50 x 7.3 V142	2
20	F243724	Nut	M 62 x 1,5 x Ø 42 x 6	2

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Housing Exploded View Ruhle IR56

Pos No.	Part No.	Description	Add Info	Required
1	105682	Traverse	60 x 60 x 560	1
2	F28447	Cylindrical pin	ISO2338 - Ø 8 m6 x 20	4
3	F245075	Shaft	Ø 30 x 283	2
4	F245052	Housing	75 x 100 x 111	2
5	F21087	Cylinder head screw	DIN912 M10 x 60	8
6	F29276	bushing	Ø 25,5 x Ø 37,6 x 47,2	2
7	F245071	Nut	M 40 x 1,5 x Ø 55 x 17	2
8	F29275	Guide	Ø 40 x 4 coil x 480	2
9	F240200	Ring	Ø 20,5 x Ø 30 x 10	2
10	F29278	Pressure spring	d 3.5 x De 28 x Lk 480	2
11	F29277	bushing	Ø 20,5 x Ø 37,6 x 65	2
12	F240152	Nut	Ø 30 x Ø 55 x 40	2
13	F245074	Tube	Ø 55 x 5 x 335,5	2
14	F240148	Flange	M48 x 1,5 x Ø 53,8 x 25	2
15	F245076	Disc	Ø 18 x 4	8
16	105571	Slide bearing	PFM-2023-30	2
17	F29145	Slide bearing	JUM-02-40	2
18	F29213	Take-up ring	Ø 42 x Ø 60 x 10	2
19	F29195	Grooved ring	40 x 50 x 7.3 V142	2
20	F243724	Nut	M 62 x 1,5 x Ø 42 x 6	2
