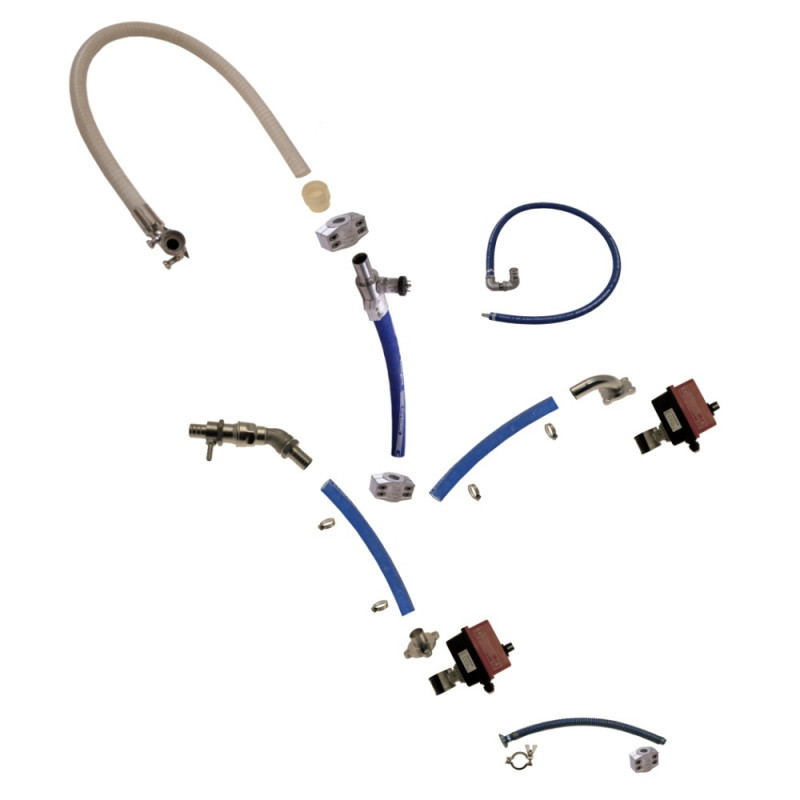

Schlauchverlegung Assembly IR56 Injector

Type: 105917
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2310

* Schlauchverlegung Assembly IR 56 Facelift No 612 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Schlauchverlegung Assembly IR56 Injector

Type: 105917
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2310

* Schlauchverlegung Assembly IR 56 Facelift No 612 and higher:
--105798 Anschluß
--105818 Mischerventil
--F27693 U-Scheibe
--F26379 Federring
--105580 Sechskantschraube
--105943et Schlauch
--108312 Schlauch
--105985 Schlauch
--105946 Schlauch
--105944 Schlauch
--105796 Anschluß

Hose Laying Assembly IR56 Injector No. 612 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	105798	Connector	IR 28/56/112 Compact	1
2	105818	Mixer valve	IR 28/56	2
3	F27693	Washer	DIN125 A 10,5	8
4	F26379	Spring lock washer	DIN127 B 10	8
5	105580	Hexagonal bolt	DIN931 M10 x 80	8
6	105943et	Hose	IR 56	1
7	108312	Hose	IR 56	1
8	105985	Hose	IR 56	1
9	105946	Hose	IR 56	1
10	105944	Hose	IR 28/56/112 Compact	1
11	105796	Connector	IR 28/56	1

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Hose Laying Assembly IR56 Injector No. 612 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	105798	Connector	IR 28/56/112 Compact	1
2	105818	Mixer valve	IR 28/56	2
3	F27693	Washer	DIN125 A 10,5	8
4	F26379	Spring lock washer	DIN127 B 10	8
5	105580	Hexagonal bolt	DIN931 M10 x 80	8
6	105943et	Hose	IR 56	1
7	108312	Hose	IR 56	1
8	105985	Hose	IR 56	1
9	105946	Hose	IR 56	1
10	105944	Hose	IR 28/56/112 Compact	1
11	105796	Connector	IR 28/56	1
