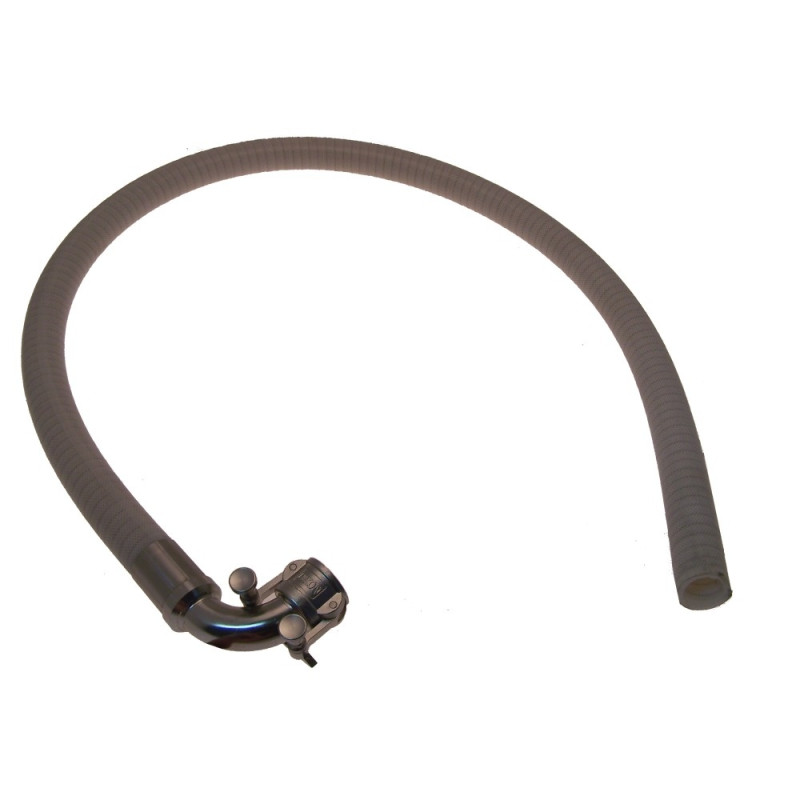

Hose Complete Ruhle IR112 Injector

Type: 100416
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2191

* Hose Complete IR 112:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Hose Complete Ruhle IR112 Injector

Type: 100416
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2191

* Hose Complete IR 112:
--F444438 Connector
--F240280 Seal
--F240271 Lever
--F21712 Pin
--F240277 Ring
--F441881 Locking bolt
--F256143 Hose
--F29107 Bushing

Hose Complete Ruhle IR112 Injector

Pos No.	Part No.	Connector	Add Info	Required
1	F444438	Connector	IR 28/56 / IR 112	1
2	F240280	Seal	Ø 26 x Ø 40 x 6,3	1
3	F240271	Lever	56,5 x 15 x 10	2
4	F21712	Pin	Ø 5,5 x Ø 5,9 x 25	2
5	F240277	Ring	Ø 10,2 x Ø 15 x 7	2
6	F441881	Locking bolt	IR 28/56 / IR 112	2
7	F256143	Hose	Ø 32 x 5,8 x 1800	1
8	F29107	Bushing	Ø 39,5 x Ø 49 x 50	1

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Hose Complete Ruhle IR112 Injector

Pos No.	Part No.	Connector	Add Info	Required
1	F444438	Connector	IR 28/56 / IR 112	1
2	F240280	Seal	Ø 26 x Ø 40 x 6,3	1
3	F240271	Lever	56,5 x 15 x 10	2
4	F21712	Pin	Ø 5,5 x Ø 5,9 x 25	2
5	F240277	Ring	Ø 10,2 x Ø 15 x 7	2
6	F441881	Locking bolt	IR 28/56 / IR 112	2
7	F256143	Hose	Ø 32 x 5,8 x 1800	1
8	F29107	Bushing	Ø 39,5 x Ø 49 x 50	1
