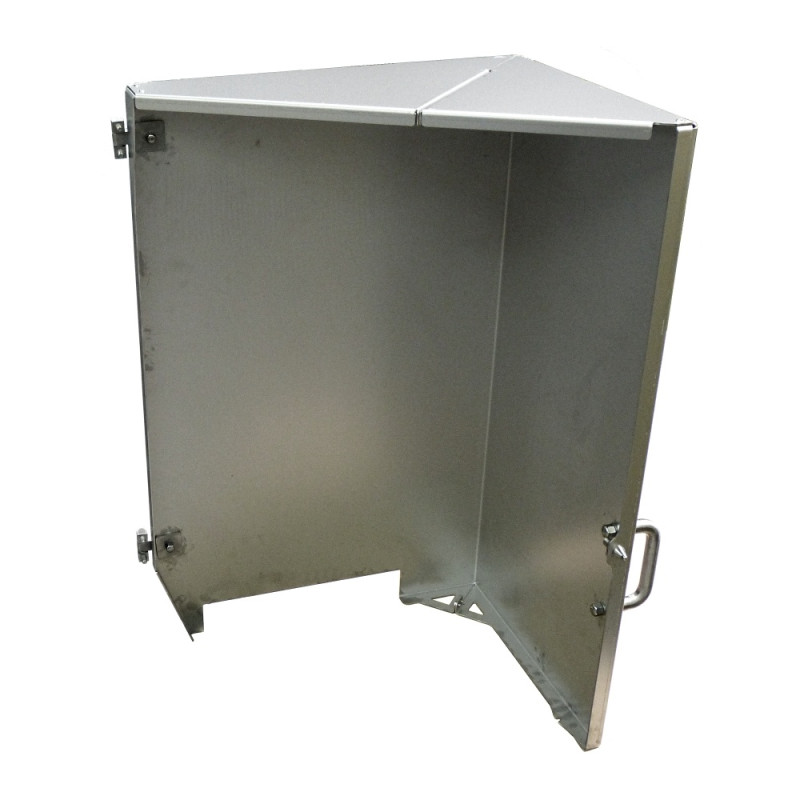

Hood Complete 1 Ruhle IR56 No. 612 and Higher

Type: 105781
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2252

* Haube Complete 1 IR 56 Facelift No 612 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Hood Complete 1 Ruhle IR56 No. 612 and Higher

Type: 105781
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2252

* Haube Complete 1 IR 56 Facelift No 612 and higher:
--105659 Profil
--105657 Blech
--105652 Griff
--105568 Scharnier
--F27693 U-Scheibe
--F20811 Hutmutter
--105649 Bolzen
--105650 Buchse
--F21057 Ring
--105653 Bolzen
--F248868 Gleitlager
--F22888 U-Scheibe
--F20134 Hutmutter

Hood Complete 1 Ruhle IR56 No. 612 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	105657	plate / sheet	42 x 42 x 4	2
2	105659	Profile	915 x 640 x 435 x 2,5	1
3	105652	Handle	Ø 20 x 150 x 83	1
4	105568	Hinge	219-9108.00-0000	2
5	F27693	Washer	DIN125 A 10,5	2
6	F20811	Cap nut	DIN917 M 10	2
7	105649	Bolt	Ø 15 x 33	1
8	105650	Bushing	Ø 10,3 x Ø 30 x 19	1
9	F21057	Ring	Ø 10 x Ø 22 x 2,5	1
10	105653	Bolt	Ø 17 x 18	1
11	F248868	Bearings	DIN1850 - J10 x 12 x 10	1
12	F20134	Cap nut	DIN917 M 8	6
13	F22888	Washer	DIN125 A 8,4	2

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Hood Complete 1 Ruhle IR56 No. 612 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	105657	plate / sheet	42 x 42 x 4	2
2	105659	Profile	915 x 640 x 435 x 2,5	1
3	105652	Handle	Ø 20 x 150 x 83	1
4	105568	Hinge	219-9108.00-0000	2
5	F27693	Washer	DIN125 A 10,5	2
6	F20811	Cap nut	DIN917 M 10	2
7	105649	Bolt	Ø 15 x 33	1
8	105650	Bushing	Ø 10,3 x Ø 30 x 19	1
9	F21057	Ring	Ø 10 x Ø 22 x 2,5	1
10	105653	Bolt	Ø 17 x 18	1
11	F248868	Bearings	DIN1850 - J10 x 12 x 10	1
12	F20134	Cap nut	DIN917 M 8	6
13	F22888	Washer	DIN125 A 8,4	2
