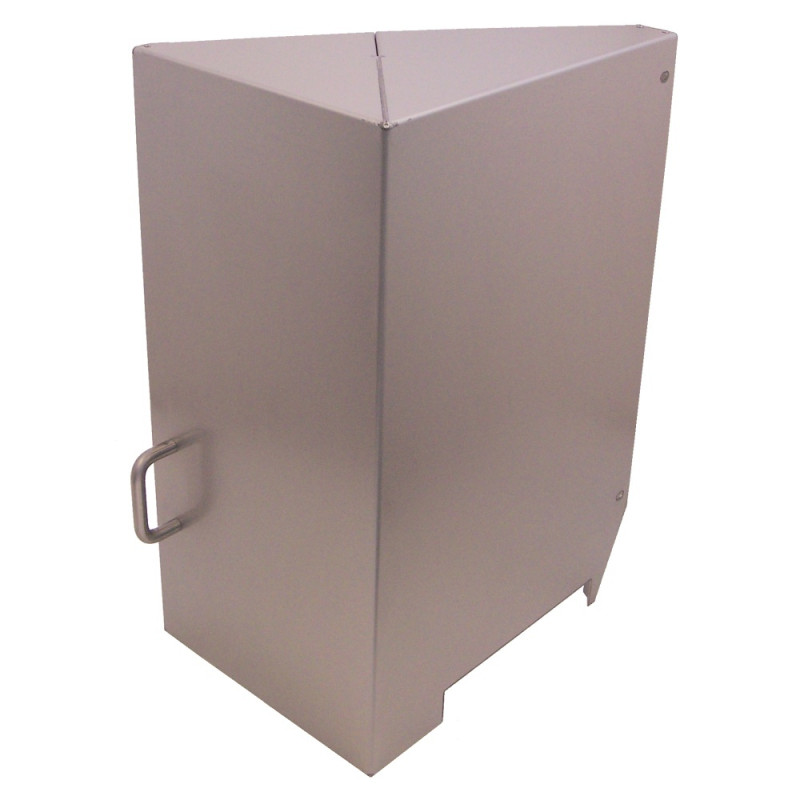

Hood Complete 1 IR56 Injector 105781

Type: 105781
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1510

* Hood Complete 1 IR 56 Facelift:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Hood Complete 1 IR56 Injector 105781

Type: 105781
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1510

* Hood Complete 1 IR 56 Facelift:
--105659 Profile
--105657 plate / sheet
--105652 handle
--105568 Hinge
--F27693 Washer
--F20811 Cap nut
-- 105649 bolt
-- 105650 bushing
-- F21057 Ring
-- 105653 bolt
-- F248868 Slide bearing
--F20134 Cap nut

Hood Complete 1 Ruhle IR56 Injector

Pos No.	Part No.	Description	Add Info	Required
1	105659	Profile	898 x 574 x 430 x 2,5	1
2	105657	plate / sheet	42 x 42 x 4	2
3	105652	handle	Ø 20 x 150 x 83	1
4	105568	Hinge	219-9108.00-0000	2
5	F27693	Washer	DIN125 A 10,5	2
6	F20811	Cap nut	DIN917 M 10	2
7	105649	bolt	Ø 15 x 33	1
8	105650	bushing	Ø 30 x Ø 10,3 x 19	1
9	F21057	Ring	Ø 10 x Ø 22 x 2,5	1
10	105653	bolt	Ø 17 x 18	1
11	F248868	Slide bearing	DIN1850 - J10 x 12 x 10	1
12	F20134	Cap nut	DIN917 M 8	6
13	F22888	Washer	DIN125 A 8,4	2

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Hood Complete 1 Ruhle IR56 Injector

Pos No.	Part No.	Description	Add Info	Required
1	105659	Profile	898 x 574 x 430 x 2,5	1
2	105657	plate / sheet	42 x 42 x 4	2
3	105652	handle	Ø 20 x 150 x 83	1
4	105568	Hinge	219-9108.00-0000	2
5	F27693	Washer	DIN125 A 10,5	2
6	F20811	Cap nut	DIN917 M 10	2
7	105649	bolt	Ø 15 x 33	1
8	105650	bushing	Ø 30 x Ø 10,3 x 19	1
9	F21057	Ring	Ø 10 x Ø 22 x 2,5	1
10	105653	bolt	Ø 17 x 18	1
11	F248868	Slide bearing	DIN1850 - J10 x 12 x 10	1
12	F20134	Cap nut	DIN917 M 8	6
13	F22888	Washer	DIN125 A 8,4	2
