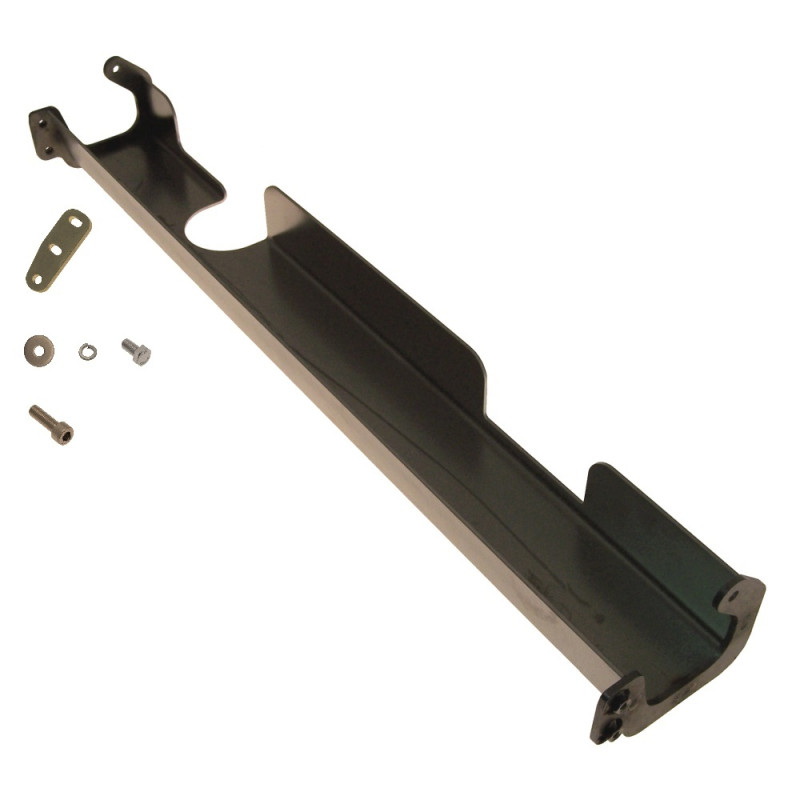

Hinge Complete 2 Ruhle SR3 No. 35 and Higher

Type: 104602
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1088

Note: Shipping to be Determined.

* Hinge Complete 2 SR3 Lifting unit No. 35 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Hinge Complete 2 Ruhle SR3 No. 35 and Higher

Type: 104602
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1088

Note: Shipping to be Determined.

* Hinge Complete 2 SR3 Lifting unit No. 35 and higher:
--F42369 Hinge
--F29387 plate / sheet
--F21035 Disc
-- F24031 Spring lock washer
--F26033 Hexagonal bolt
--F22888 Washer
--F20259 Hexagonal nut
--F22621 Cylinder head screw

Hinge Complete 2 Ruhle SR3 No. 35 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F42369	Hinge	SR 3	1
2	F29387	plate / sheet	80 x 25 x 5	2
3	F21035	Disc	Ø 6,5 x Ø 20 x 2	4
4	F24031	Spring lock washer	DIN127 B 6	4
5	F26033	Hexagonal bolt	DIN933 M 6 x 20	4
6	F22888	Washer	DIN125 A 8,4	4
7	F20259	Hexagonal nut	DIN934 M 8	4
8	F22621	Cylinder head screw	DIN912 M 8 x 25	4

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Hinge Complete 2 Ruhle SR3 No. 35 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F42369	Hinge	SR 3	1
2	F29387	plate / sheet	80 x 25 x 5	2
3	F21035	Disc	Ø 6,5 x Ø 20 x 2	4
4	F24031	Spring lock washer	DIN127 B 6	4
5	F26033	Hexagonal bolt	DIN933 M 6 x 20	4
6	F22888	Washer	DIN125 A 8,4	4
7	F20259	Hexagonal nut	DIN934 M 8	4
8	F22621	Cylinder head screw	DIN912 M 8 x 25	4
