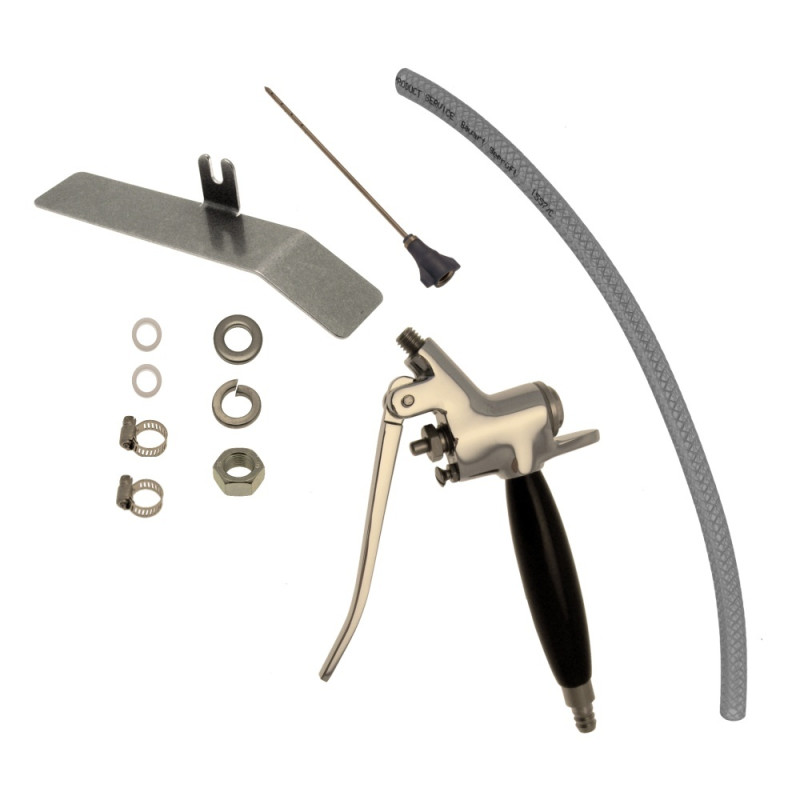

Handspritze Assembly Ruhle PR10 Injector
Pos No. | Part No. | Description | Add Info | Required | |
1 | F27964 | Hand sprayer | PR | 1 | |
2 | F26673 | Curing needle | Ø 3,0 x 152 | 1 | |
3 | F26944 | Ring | Ø 9 x Ø 15 x 2 | 2 | |
4 | F27665 | Hose | Ø 6 x 3 | 2500 mm | |
5 | F20164 | Hose clamp | MAH 4 Ø 8-16 | 3 | |
6 | F257748 | Profile | 37 x 50,6 x 175 x 2 | 1 | |
7 | F24031 | Spring lock washer | DIN127 B 6 | 1 | |
8 | F21035 | Washer | Ø 6,5 x Ø 20 x 2 | 1 | |
9 | F20203 | Hexagonal nut | DIN934 M 6 | 1 |
