Guide Tube Exploded View for Ruhle IR56 Meat Injector
Pos No. | Part No. | Description | Add Info | Required | |

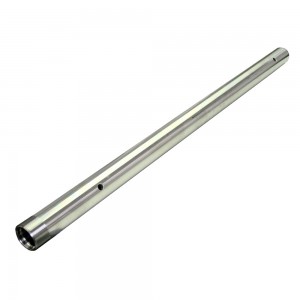

1 | F29119 | Tube | Ø 28 x Ø 40 x 780 | 1 | |
2 | F24965 | Slide bushing | DIN1850 Ø 25 x Ø 32 x 35 | 2 | |
3 | F29111 | Snap ring | B32 x 2.5 | 2 |
Pos No. | Part No. | Description | Add Info | Required | |
1 | F29119 | Tube | Ø 28 x Ø 40 x 780 | 1 | |
2 | F24965 | Slide bushing | DIN1850 Ø 25 x Ø 32 x 35 | 2 | |
3 | F29111 | Snap ring | B32 x 2.5 | 2 |
