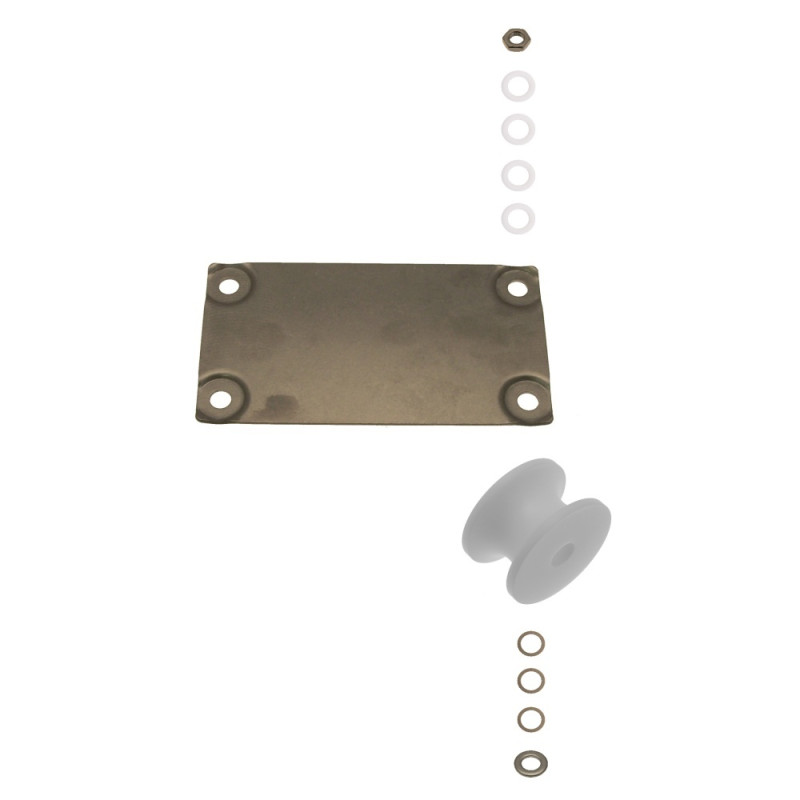

Guide Complete Ruhle PR20

Type: F458204
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2047

* Guide Complete PR 20:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Guide Complete Ruhle PR20

Type: F458204
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2047

* Guide Complete PR 20:
--F20047 Hexagonal nut
--F22333 Rolle
--F22519 plate / sheet
--F22916 Washer
--F26948 Compensating disc
--F26948a Compensating disc
--F26948b Compensating disc
--F28958 Ring
--F28959 Ring
--F28960 Ring
--F28961 Ring

Guide Complete PR20 Injector

Pos No.	Part No.	Description	Add Info	Required
1	F20047	Hexagonal nut	DIN439 M 10	4
2	F22333	Rolle	Ø 15,1 x Ø 68,4 x 40	4
3	F22519	plate / sheet	180 x 100 x 2,5 x 2	1
4	F22916	Washer	DIN125 A 15	4
5	F26948	Compensating disc	Ø 16 x Ø 22 x 0,1	4
6	F26948a	Compensating disc	Ø 16 x Ø 22 x 0,2	4
7	F26948b	Compensating disc	Ø 16 x Ø 22 x 0,5	4
8	F28958	Ring	Ø 15,2 x Ø 25 x 1,5	4
9	F28959	Ring	Ø 15,2 x Ø 25 x 2	4
10	F28960	Ring	Ø 15,2 x Ø 25 x 2,5	4
11	F28961	Ring	Ø 15,2 x Ø 25 x 3	4

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Guide Complete PR20 Injector

Pos No.	Part No.	Description	Add Info	Required
1	F20047	Hexagonal nut	DIN439 M 10	4
2	F22333	Rolle	Ø 15,1 x Ø 68,4 x 40	4
3	F22519	plate / sheet	180 x 100 x 2,5 x 2	1
4	F22916	Washer	DIN125 A 15	4
5	F26948	Compensating disc	Ø 16 x Ø 22 x 0,1	4
6	F26948a	Compensating disc	Ø 16 x Ø 22 x 0,2	4
7	F26948b	Compensating disc	Ø 16 x Ø 22 x 0,5	4
8	F28958	Ring	Ø 15,2 x Ø 25 x 1,5	4
9	F28959	Ring	Ø 15,2 x Ø 25 x 2	4
10	F28960	Ring	Ø 15,2 x Ø 25 x 2,5	4
11	F28961	Ring	Ø 15,2 x Ø 25 x 3	4
