Getriebe Exploded View PR15 No. 3649 and Higher
Type: 111975
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2009
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2009

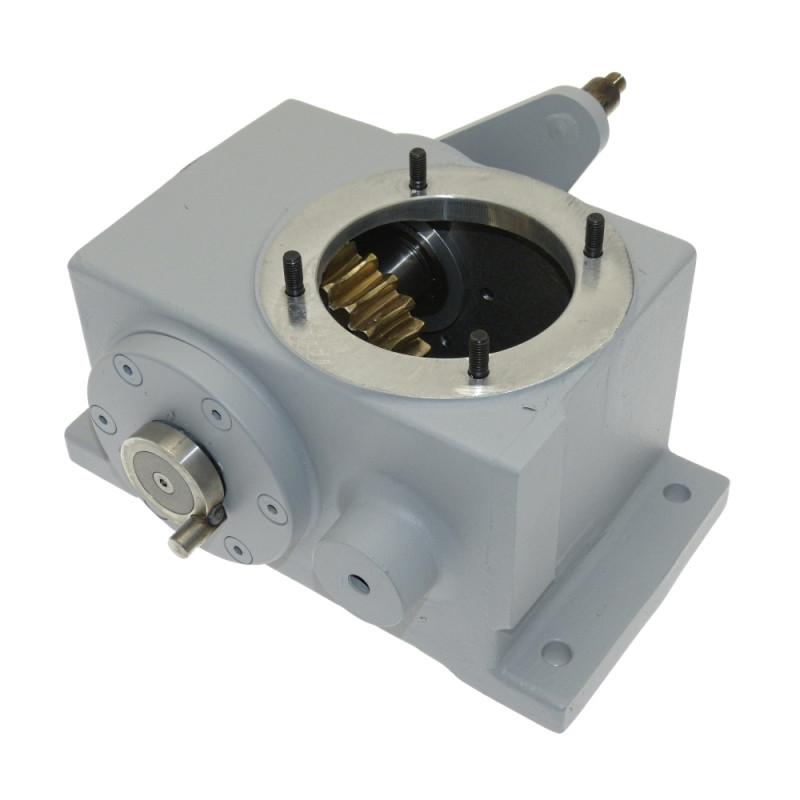

Gear Box Complete Ruhle PR15 No. 3649 and Higher Injector
| Pos No. | Parts No. | Description | Add Info | Required | |
 |
1 | F20048 | Countersunk bolt | DIN7991 M 6 x 16 | 1 |
 |
2 | F20192 | Shaft | Ø 35 x 237 | 1 |
 |
3 | F20194 | Worm wheel | Z 24 m 4,0 | 1 |
 |
4 | F20200 | Flange | Ø 30,5 x Ø 120 x 35 | 1 |
|
5 | F20207 | Countersunk bolt | DIN7991 M 8 x 25 | 12 |
 |
6 | F20211 | Grooved ball bearing | DIN625 - 4206 | 1 |
 |
7 | F20213 | Tapered ball bearing | DIN628 - 3204 | 1 |
 |
8 | F20217 | Locking ring | DIN471 Ø 30 x 1,5 | 1 |
 |
9 | F20222 | Spring key | A 6 x 6 x 16 | 1 |
 |
10 | F20223 | Spring key | A 8 x 7 x 30 | 1 |
 |
11 | F20227 | Threaded pin | DIN914 M 8 x 16 | 1 |
 |
12 | F20208 | Countersunk bolt | DIN7991 M 8 x 20 | 1 |
 |
13 | F21309 | Radial shaft seal | Ø 30 x Ø 40 x 7 | 1 |
 |
14 | F21345 | Radial shaft seal | Ø 35 x Ø 47 x 7 | 1 |
 |
15 | F25272 | bushing | M 26 x 1,5 x Ø 50 x 15 | 1 |
 |
16 | F26569 | Grooved ball bearing | DIN625 - 6203 1Z | 1 |
 |
17 | F28160 | Flange | Ø 35 x Ø 120 x 35 | 1 |
 |
18 | F28327 | Disc | Ø 10,5 x Ø 34,5 x 2,5 | 1 |
 |
19 | F28643 | Gear box PR 9/10/15 empty | 304 x 198 x 151,7 | 1 |
 |
420 | F40029 | Eccentric tappet | PR 8 - 20 | 1 |
 |
21 | F41082 | Lever | PR 8 - 20 | 1 |
 |
22 | F24901 | Washer | Ø 12,5 x Ø 35 x 3 | 1 |
 |
23 | F22860 | Scheibe | Ø 30 x Ø 42 x 0,1 | |
|
24 | F22860a | Scheibe | Ø 30 x Ø 42 x 0,25 | 1 |
|
25 | F22860b | Scheibe | Ø 30 x Ø 42 x 0,5 | 1 |
 |
26 | F22943 | Gewindestift | DIN551 M 6 x 30 | 4 |
 |
27 | F20225 | Stiftschraube | DIN835 M 8 x 38 | 4 |
