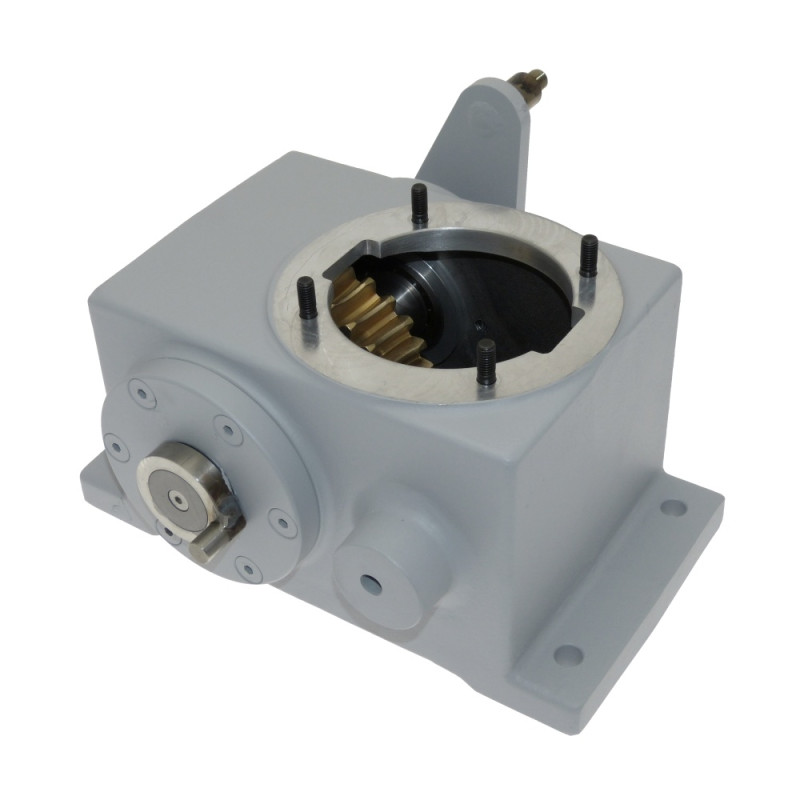

Gear Box Exploded View Ruhle PR20 No. 2786 and Higher Injector

Type: 111973
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2067

* Getriebe Exploded View PR 20 No 2786 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Gear Box Exploded View Ruhle PR20 No. 2786 and Higher Injector

Type: 111973
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2067

* Getriebe Exploded View PR 20 No 2786 and higher:
--F20048 Senkschraube
--F20192 Welle
--F28838 Schneckenrad
--F20200 Flansch
--F20207 Senkschraube
--F20211 Rillenkugellager
--F20213 Schrägkugellager
--F20217 Sicherungsring
--F20222 Paßfeder
--F20223 Paßfeder
--F20225 Stiftschraube
--F20227 Gewindestift
--F20208 Senkschraube
--F21309 Radial-Wellendichtring
--F21345 Radial-Wellendichtring
--F22943 Gewindestift
--F25272 Buchse
--F26569 Rillenkugellager
--F28160 Flansch
--F28327 Scheibe
--F22411 Gehäuse
--F40029 Exzenter
--F41082 Hebel
--F24901 Scheibe

Gear Box Complete Ruhle PR20 No. 2786 and Higher Injector

Pos No.	Parts No.	Description	Add Info	Required
1	F20048	Countersunk bolt	DIN7991 M 6 x 16	1
2	F20192	Shaft	Ø 35 x 237	1
3	F20194	Worm wheel	Z 24 m 4,0	1
4	F20200	Flange	Ø 30,5 x Ø 120 x 35	1
5	F20207	Countersunk bolt	DIN7991 M 8 x 25	12
6	F20211	Grooved ball bearing	DIN625 - 4206	1
7	F20213	Tapered ball bearing	DIN628 - 3204	1
8	F20217	Locking ring	DIN471 Ø 30 x 1,5	1
9	F20222	Spring key	A 6 x 6 x 16	1
10	F20223	Spring key	A 8 x 7 x 30	1
11	F20225	Stiftschraube	DIN835 M 8 x 38	1
12	F20227	Threaded pin	DIN914 M 8 x 16	1
13	F20208	Countersunk bolt	DIN7991 M 8 x 20	1
14	F21309	Radial shaft seal	Ø 30 x Ø 40 x 7	1
15	F21345	Radial shaft seal	Ø 35 x Ø 47 x 7	1
16	F22943	Gewindestift	DIN551 M 6 x 30	1
17	F25272	bushing	M 26 x 1,5 x Ø 50 x 15	1
18	F26569	Grooved ball bearing	DIN625 - 6203 1Z	1
19	F28160	Flange	Ø 35 x Ø 120 x 35	1
20	F28327	Disc	Ø 10,5 x Ø 34,5 x 2,5	1
21	F28643	Gear box PR 9/10/15 empty	304 x 198 x 151,7	1
22	F40029	Eccentric tappet	PR 8 - 20	1
23	F41082	Lever	PR 8 - 20	1
24	F24901	Washer	Ø 12,5 x Ø 35 x 3	1
