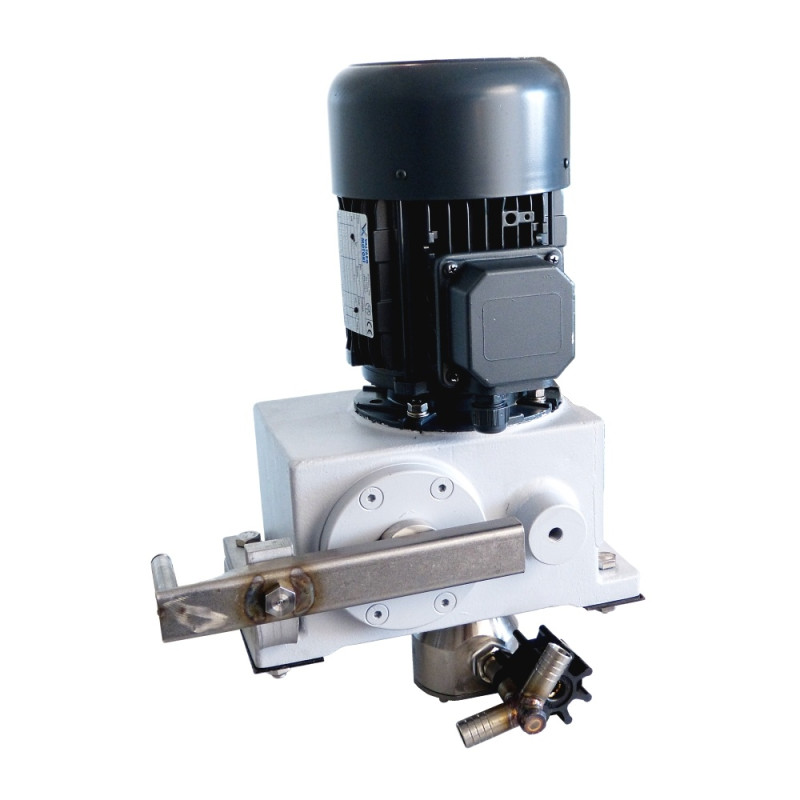

Getriebe Complete PR10 parts No. 2515 and Higher

Type: F41736
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1951

* Getriebe Complete PR 10 No 2515 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Getriebe Complete PR10 parts No. 2515 and Higher

Type: F41736
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1951

* Getriebe Complete PR 10 No 2515 and higher:
--111975 Getriebe
--F25274 Schnecke
--F20199 KreuzlochmutterF25432 Gewindestift
--F25432 Gewindestift
--F20201 Winkel
--F20202 U-Scheibe
--F20203 Sechskantmutter
--F20204 Sechskantmutter
--F20210 Federring
--F20214 Sinterlager
--F20229 Sechskantschraube
--F20230 Sechskantschraube
--F20259 Sechskantmutter
--F21260 Federring
--F22888 U-Scheibe
--F24031 Federring
--F27669 Bolzen
--F27788 Schrägkugellager
--F257892 Platte
--F10002 Öl
--F10140 Fließfett
--F40031 Vorschub
--F40254 Impellerpumpe
--109863 Drehstrommotor

Gear Box Complete Ruhle PR10 No. 2515 and Higher Injector

Pos No.	Parts No.	Description	Add Info	Required
1	111975	Getriebe	PR 8 - 15	1
2	F25274	Worm	Ø 24 x Ø 58 x 65	1
3	F20199	Capstan nut	M 22 x 1.5	1
4	F25432	Threaded pin	DIN914 M 6 x 10	1
5	F20201	Bracket	198,2 x 88,1 x 30 x 15	1
6	F20202	Washer	DIN125 A 13	5
7	F20203	Hexagonal nut	DIN934 M 6	4
8	F20204	Hexagonal nut	DIN934 M 12	5
9	F20210	Spring lock washer	DIN127 B 12	4
10	F20214	Slide bushing	DIN1850 Ø 15 x Ø 20 x 15	1
11	F20229	Hexagonal bolt	DIN933 M12 x 60	2
12	F20230	Hexagonal bolt	DIN933 M12 x 40	2
13	F20259	Hexagonal nut	DIN934 M 8	4
14	F21260	Spring lock washer	DIN127 B 8	4
15	F22888	Washer	DIN125 A 8,4	4
16	F24031	Spring lock washer	DIN127 B 6	4
17	F27669	bolt	SW 19 x 53,8	1
18	F27788	Tapered ball bearing	DIN628 - 3201 2RS	1
19	F257892	Plate	170 x 50 x 2.3	2
20	F10002	Oil	BMB 220 graphite additive	0.4 l
21	F10140	Low-viscosity grease	Low-viscosity grease	1.5 l
22	F40031	Forward feed	PR 8 - 15	1
23	F40254	Impeller pump	PR 8 - 20	1
24	109863	Gear motor	M90S-4	1

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Gear Box Complete Ruhle PR10 No. 2515 and Higher Injector

Pos No.	Parts No.	Description	Add Info	Required
1	111975	Getriebe	PR 8 - 15	1
2	F25274	Worm	Ø 24 x Ø 58 x 65	1
3	F20199	Capstan nut	M 22 x 1.5	1
4	F25432	Threaded pin	DIN914 M 6 x 10	1
5	F20201	Bracket	198,2 x 88,1 x 30 x 15	1
6	F20202	Washer	DIN125 A 13	5
7	F20203	Hexagonal nut	DIN934 M 6	4
8	F20204	Hexagonal nut	DIN934 M 12	5
9	F20210	Spring lock washer	DIN127 B 12	4
10	F20214	Slide bushing	DIN1850 Ø 15 x Ø 20 x 15	1
11	F20229	Hexagonal bolt	DIN933 M12 x 60	2
12	F20230	Hexagonal bolt	DIN933 M12 x 40	2
13	F20259	Hexagonal nut	DIN934 M 8	4
14	F21260	Spring lock washer	DIN127 B 8	4
15	F22888	Washer	DIN125 A 8,4	4
16	F24031	Spring lock washer	DIN127 B 6	4
17	F27669	bolt	SW 19 x 53,8	1
18	F27788	Tapered ball bearing	DIN628 - 3201 2RS	1
19	F257892	Plate	170 x 50 x 2.3	2
20	F10002	Oil	BMB 220 graphite additive	0.4 l
21	F10140	Low-viscosity grease	Low-viscosity grease	1.5 l
22	F40031	Forward feed	PR 8 - 15	1
23	F40254	Impeller pump	PR 8 - 20	1
24	109863	Gear motor	M90S-4	1
