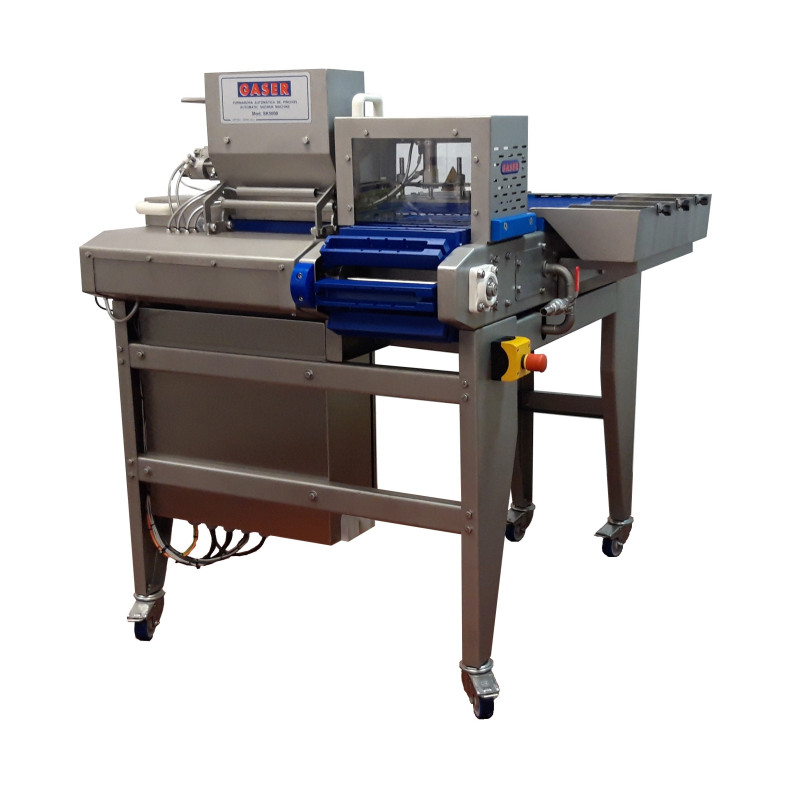

Automatic Skewer Machine SK-5000

Type: For Single Ingredients
Country of Origin: Spain
Ships from: FOB Brampton, ON Canada (O)
U/M: Each
Stock: On Order
Shipping Dimension: 54 X 47 X 54
Shipping Weight: 441 lbs
CM: 7263

Financing Available

Note: Price subject to change without notice

Brochure

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Automatic Skewer Machine SK-5000

Type: For Single Ingredients
Brand: 1019
Location: FOB Brampton, ON Canada (O)
U/M: Each
Stock: On Order
Shipping Dimension: 54 X 47 X 54
Shipping Weight: 441 lbs
CM Product Code: 7263

Financing Available

Note: Price subject to change without notice

Gaser SK-5000 Automatic Skewer Machine

Specifications:

Completely autonomous machine.
Made of stainless steel.
Ideal for 1 ingredient
Can produces up to 1500 units per hour – 25 units per minute.
The machine is fed by the workers, therefore the output speed depends on the speed they work at
Standard mold can fit products up to 220mm in length
Can use skewers from 120-330mm long with a diameter of 3.8mm
Standard point tip skewers are recommended for minimal friction
Adjustable skewer length but only for straight skewers (not gun type)
Separators are used to limit the length of product in the mold chamber, as well as pushing the product together as the skewer enters.
The maximum dice/portion that can be used is a 30x30x30mm, but the machine will be able to adjust if it is a little bit bigger such as 2-3 millimeters more
The average market measurements are 22- and 35-mm meat dices.
Automatic cleaning

Technical Characteristics:

Pneumatic operation at 6 bars (kg/cm²)
Air consumption 20 liters / minute
Electrical power: 400W
Electric current 230V, 50/60Hz
Dimensions: 1305 × 1130 × 1320 mm
Net weight: 120 kg

Note: Ideal for two employees one on each side

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description Videos

Gaser SK-5000 Automatic Skewer Machine

Specifications:

Completely autonomous machine.
Made of stainless steel.
Ideal for 1 ingredient
Can produces up to 1500 units per hour – 25 units per minute.
The machine is fed by the workers, therefore the output speed depends on the speed they work at
Standard mold can fit products up to 220mm in length
Can use skewers from 120-330mm long with a diameter of 3.8mm
Standard point tip skewers are recommended for minimal friction
Adjustable skewer length but only for straight skewers (not gun type)
Separators are used to limit the length of product in the mold chamber, as well as pushing the product together as the skewer enters.
The maximum dice/portion that can be used is a 30x30x30mm, but the machine will be able to adjust if it is a little bit bigger such as 2-3 millimeters more
The average market measurements are 22- and 35-mm meat dices.
Automatic cleaning
