Funnel Exploded View Ruhle IR112 Injector

Type: F450588
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2219

* Funnel Exploded View IR 112:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Funnel Exploded View Ruhle IR112 Injector

Type: F450588
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2219

* Funnel Exploded View IR 112:
--100388 Funnel
--F250602 Ring
--F250604 Ring
--F250592 Plate / Sheet
--F26720 Cap nut
--F21260 Spring lock washer
--F20134 Cap nut
--F252620 Bushing
--F252954 Locking bolt
--F250606 Strip
--F452644 Clamping bar
--F20810 Cap nut
--100389 Plate / Sheet

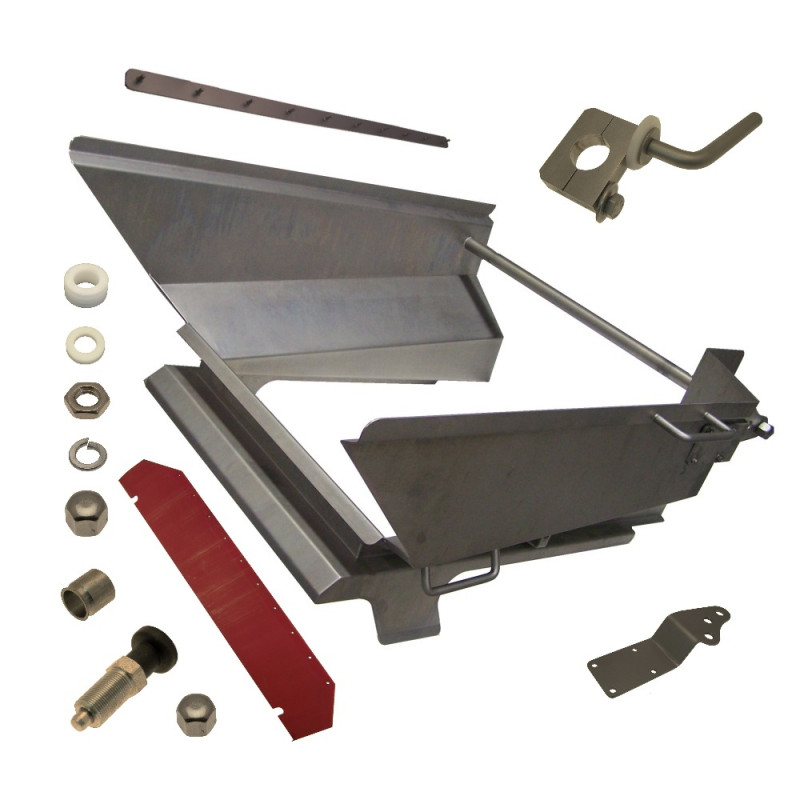

Funnel Exploded View Ruhle IR112 Injector

Pos No.	Part No.	Description	Add Info	Required
1	100388	Funnel	IR 112	1
2	F250602	Ring	Ø 28,5 x Ø 50 x 21,5	1
3	F250604	Ring	Ø 28,5 x Ø 50 x 5,5	1
4	F250592	Plate / Sheet	319,5 x 105,2 x 57,2 x 6	1
5	F26720	Cap nut	DIN917 M 20	1
6	F21260	Spring lock washer	DIN127 B 8	4
7	F20134	Cap nut	DIN917 M 8	4
8	F252620	Bushing	Ø 20,5 x Ø 25 x 25	1
9	F252954	Locking bolt	GN 617-10-A-NI	1
10	F250606	Strip	1005 x 330 x 4	1
11	F452644	Clamping bar	IR 112	1
12	F20810	Cap nut	DIN917 M 6	10
13	100389	Plate / Sheet	IR 112	1
