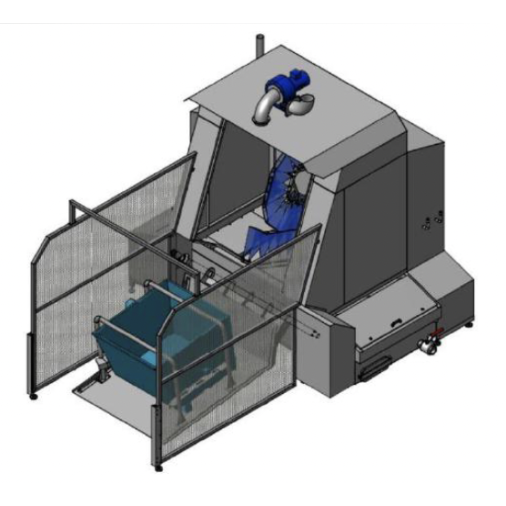

Front Load Pallboxes Combo Washer

Front Load Pallboxes Combo Washer

The container washer is for efficient cleaning. This machine contains a combined prewash cycle (optional), main wash and rinse.

As the standard, the containers are loaded and unloaded via an electromotive operated loading door. The containers are easily placed directly on the water-tight door and are fixated. Afterwards, the door (with drip water recovery) is closed and the washing cycle begins automatically. The door opens automatically at the end of the wash cycle.

The cleaning and washing cycles are adjustable (mean duration 100 sec.) and comprise 6 phases:
1. Loading and closing the door
2. Hot water cycle at 35 - 60 ° C
3. Break for the draining
4. Rinse with disinfectant action at 82 ° - 85 ° C
5. Break for the draining
6. Open the door, follow-up time from the steam outlet and remove the container

Specifications

• Capacity: 15-30 container/hour
• Washing time: adjustable
• Stainless Steel
• Washing temperature: 35 - 60°C adjustable
• Rinse temperature: 82 - 85°C

Technical Data

• Electrical connection: 3~400V/50Hz+N+PE (other options upon request)
• Protection class: IP55
• Pump capacity: 22 kW ~ 90 mm³ with 6 bar
• Vapor extractor: low pressure fan 2,2 kW
• Water connection tank + rinse: 3/4”AG
• Water drain: fast emptying valve 200 x 200 mm, with additional drain 3” ball valve
• Tank capacity: approx. 800 l
• Noise level: approx. 65db (A)
• Electrical tank heating: 4 x 9 kW
• Total connection: approx. 25 kW (without Tank heating and flow heater)
• Door closing motoric: above 0,37 kW; below 1,10 kW
• Water consumption: approx. 10 - 20 l per washing circle
• Electrical consumption: approx. 0,266 kW/h – 1,416 kW/h

*Can be customized according to customer requirements*
