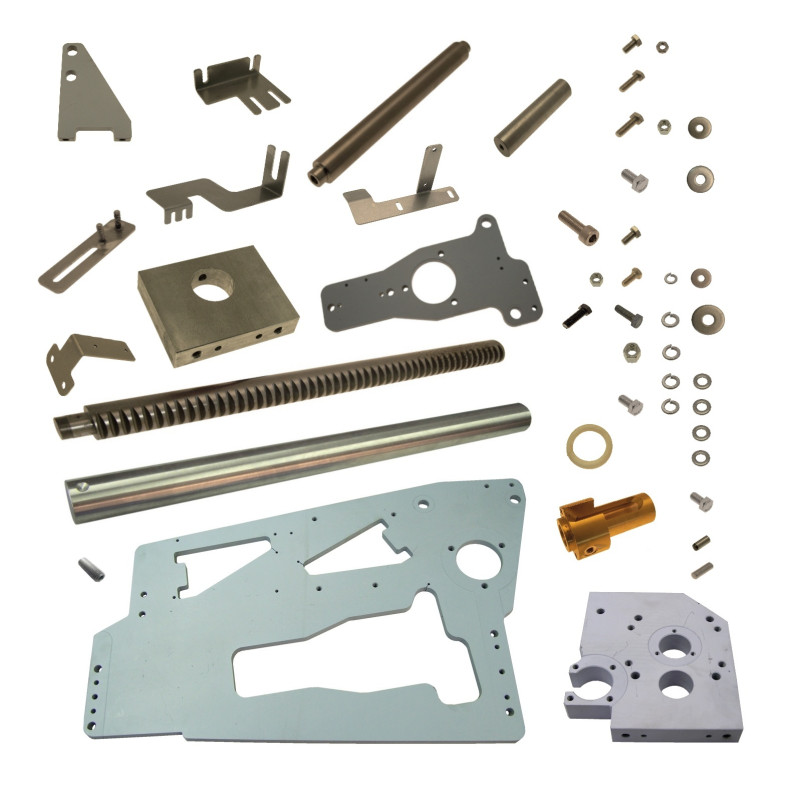

Forward feed guiding Complete SR2 No. 74 and Higher

Type: F41413-2et
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 677

Note: Shipping to be Determined.

* Forward feed guiding complete:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Forward feed guiding Complete SR2 No. 74 and Higher

Type: F41413-2et
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 677

Note: Shipping to be Determined.

* Forward feed guiding complete:
--F26922 Plate
--F26923 Plate
--F26929 Cylindrical pin
--F21042 Sechskantschraube
--F26927 Tube
--F26926 Shaft
--F27693 U-Scheibe
--F26379 Spring lock washer
--F26940 Plate
--F21400 Shock absorber
--F26796 Shaft
--F21396 Threaded pin
--F26936 Gear rack
--F21260 Federring
--F22449 Sechskantschraube
--F20202 U-Scheibe
--F20210 Federring
--F28447 Zylinderstift
--F26925 Shaft
--F26924 Plate
--F248590 Bracket
--F26903 Spring lock washer
--F24901 Scheibe
--F20230 Sechskantschraube
--F28352 Hexagonal bolt
--F20563 Hexagonal nut
--F20417 Hexagonal bolt
--F24031 Spring lock washer
--F21035 Disc
--F20204 Sechskantmutter
--F20229 Hexagonal bolt
--F20718 Zylinderschraube
--F42257 Housing
--F23646 Disc
--F20323 Sechskantschraube
--F21403 Bracket
--F22907 Scheibe
--F20147 Sechskantmutter
--F258520 Bracket
--F20258 Washer
--F26918 Plate
--F20693 Hexagonal bolt
--F20402 Sechskantschraube
--F21661 Bracket
--F21047 Hexagonal bolt
--F26897 Hexagonal nut
--F20033 Scheibe

Forward feed guiding Complete SR2 No. 74 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F26922	Plate	810 x 518 x 15	1
2	F26923	Plate	275 x 250 x 40	1
3	F26929	Cylindrical pin	ISO8734 - Ø 8 m6 x 20	6
4	F21042	Hexagonal bolt	DIN933 M12 x 30	8
5	F26927	Tube	Ø 40 x 100 x 165	1
6	F26926	Shaft	Ø 40 x 187,5	1
7	F27693	Washer	DIN125 A 10,5	5
8	F26379	Spring lock Washer	DIN127 B 10	16
9	F26940	Plate	150 x 120 x 30	1
10	F21400	Shock absorber	Ø 10 x 190	2
11	F26796	Shaft	Ø 50 x 713	1
12	F21396	Threaded pin	DIN916 M 12 x 18	1
13	F26936	Gear rack	Ø 40 x 680	1
14	F21260	Spring lock Washer	DIN127 B 8	3
15	F22449	Hexagonal bolt	DIN933 M 8 x 20	3
16	F20202	Washer	DIN125 A 13	12
17	F20210	Spring lock Washer	DIN127 A 12	18
18	F28447	Straight pin	ISO2338 - Ø 8 m6 x 20	2
19	F26925	Shaft	Ø 30 x 301	2
20	26924	Plate	400 x 220 x 15	1
21	F248590	Bracket	102,5 x 80 x 72,5 x 2,5	1
22	F26903	Spring lock Washer	DIN127 B 20	4
23	F24901	Disc	Ø 12,5 x Ø 35 x 3	4
24	F20230	Hexagonal bolt	DIN933 M12 x 40	2
25	F28352	Hexagonal bolt	DIN933 M20 x 60	1
26	F20563	Hexagonal nut	DIN934 M 20	1
27	F20417	Hexagonal bolt	DIN933 M 6 x 16	10
28	F24031	Spring lock Washer	DIN127 B 6	10
29	F21035	Disc	Ø 6,5 x Ø 20 x 2	8
30	F20204	Hexagonal nut	DIN934 M 12	8
31	F20229	Hexagonal bolt	DIN933 M12 x 60	6
32	F20718	Cylinder head screw	DIN912 M12 x 65	4
33	F42257	Housing	SR 2 Turbo	1
34	F23646	Disc	Ø 12,5 x Ø 35 x 4	4
35	F20323	Hexagonal bolt	DIN933 M12 x 25	4
36	F21403	Bracket	140 x 110 x 50 x 5	1
37	F22907	Disc	Ø 10,5 x Ø 35 x 3	11
38	F20147	Hexagonal nut	DIN934 M 10	8
39	F258520	Bracket	135 x 96,5 x 63,5 x 2,5	1
40	F20258	Washer	DIN125 A 6,4	6
41	F26918	Plate	180 x 100 x 15	2
42	F20693	Hexagonal bolt	DIN933 M10 x 35	4
43	F20402	Hexagonal bolt	DIN933 M10 x 30	4
44	F21661	Bracket	107,5 x 155 x 100 x 2,5	1
45	F21047	Hexagonal bolt	DIN933 M 6 x 12	4
46	F26897	Hexagonal nut	DIN439 M 20 x 1,5	2
47	F20033	Washer	Ø 20 x Ø 35 x 3	1
