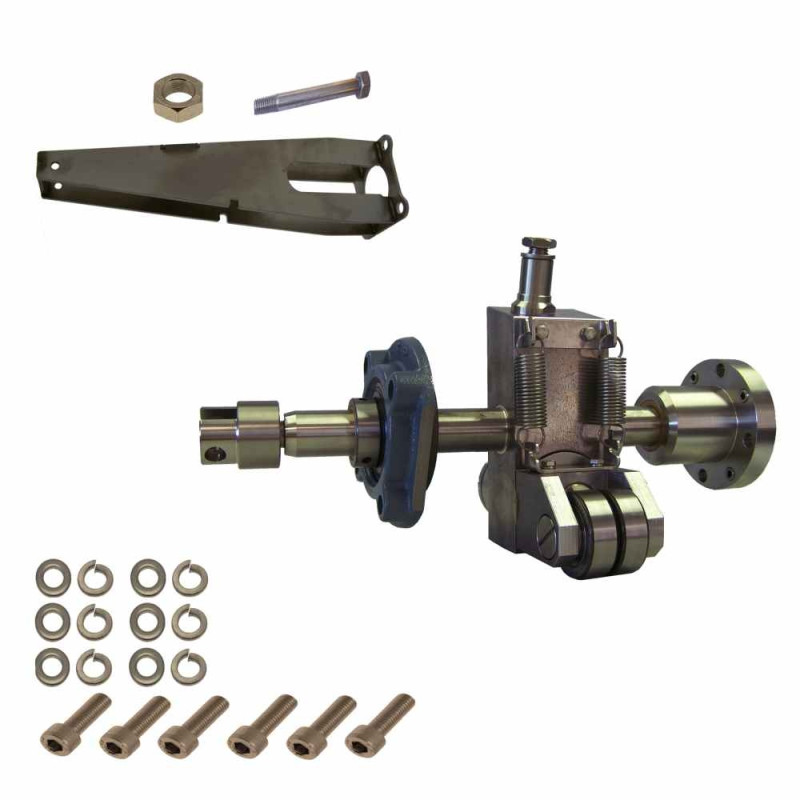

Forward feed adjustment Complete SR2 Dicer No. 435
Type: F41382
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 894
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 894
Forward Feed Adjustment Complete for SR2 Dicer
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F441852 | Block | SR 2 T | 1 |
 |
2 | F41388 | Housing | SR 2 T | 1 |
 |
3 | F26870 | Bolt | SR 2 T | 1 |
 |
4 | F23799 | Hexagonal nut | DIN439 M 16 | 1 |
 |
5 | F22454 | Disc | Ø 16,2 x Ø 27 x 3 | 1 |
 |
6 | F24031 | Spring lock washer | DIN127 B 6 | 6 |
 |
7 | F28483 | Grease nipple | M 10 x 1 | 1 |
 |
8 | F41383 | Flange | SR 2 / SR 2 T | 1 |
 |
9 | F26852a | Flange bearing | UCFC 208 | 1 |
 |
10 | F27708 | Slide bushing | DIN1850 Ø 35 x Ø 40 x 30 | 2 |
 |
11 | F41389 | Adjuster head | SR 2 / SR 2 Turbo | 1 |
 |
12 | F28227 | Spring | d 4,0 x De36 x 212 | 1 |
 |
13 | F23360 | Threaded pin | DIN916 M 6 x 20 | 1 |
 |
14 | F23173 | Cylinder head screw | DIN912 M10 x 40 | 4 |
|
15 | F28948 | Cylinder head screw | DIN912 M10 x 50 | 4 |
 |
16 | F27450 | Nut | M 35 x 1,5 x Ø 70 x 10 | 1 |
|
17 | F26833 | Threaded pin | DIN915 M 12 x 20 | 4 |
