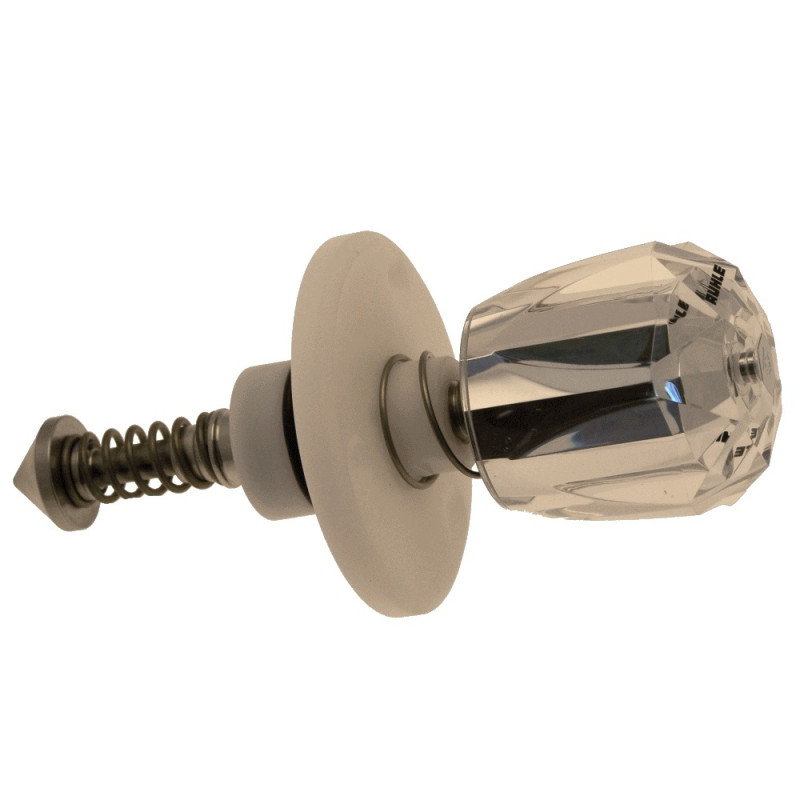

Flow Control Valve Exploded View for Ruhle PR10 Injector
Pos No. | Part No. | Description | Add Info | Required | |
1 | F41722 | Grohe adjusting valve | PR 8 - 20 | 1 | |
2 | F22560 | Pressure Spring | Ø 1,5 x De28 x 50 | 1 | |
3 | F20047 | Hexagonal Nut | DIN439 M 10 | 2 | |
4 | F20145 | Flange | Ø 80 x 45 | 1 | |
5 | F29317 | O-ring | Ø 24 x 3 | 1 | |
6 | F22570 | Radial shaft seal | Ø 14 x Ø 26 x 7 | 1 | |
7 | F20142 | Shaft | Ø 17 x 102 | 1 | |
8 | F20144 | Pressure Spring | Ø 1,8 x De16 x 35 | 1 | |
9 | F20140 | bolt | Ø 25 x 65 | 1 |
