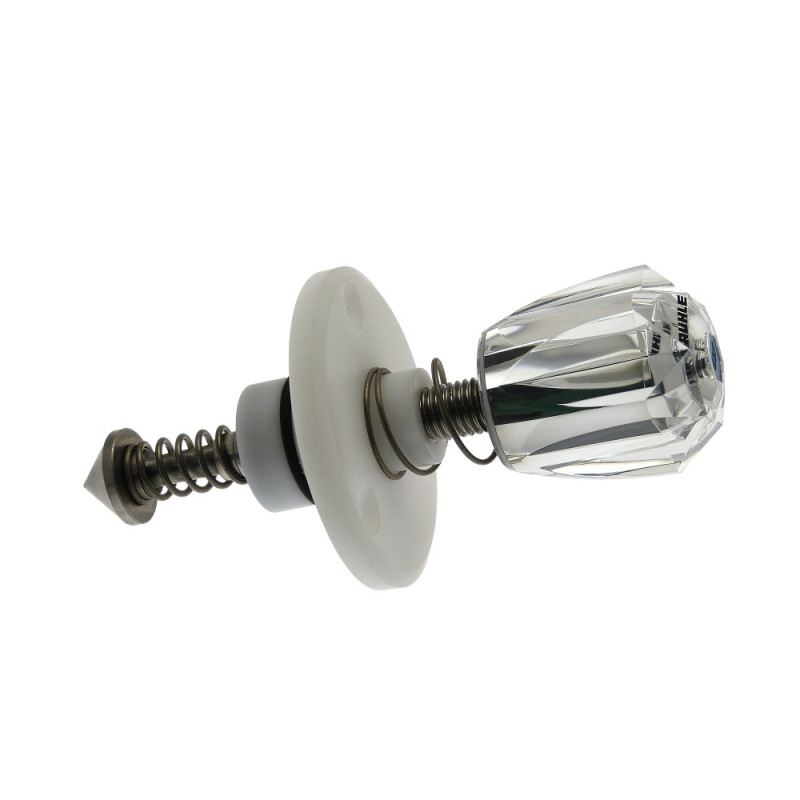

Mengenventil Exploded View Ruhle PR20 No 2786 and Higher

Type: F40024
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2064

* Mengenventil Exploded View PR 20 No 2786 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Mengenventil Exploded View Ruhle PR20 No 2786 and Higher

Type: F40024
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2064

* Mengenventil Exploded View PR 20 No 2786 and higher:
--F41722 Grohe-Verstellgriff
--F22560 Druckfeder
--F20047 Sechskantmutter
--F20145 Flansch
--F29317 O-Ring
--F22570 Radial-Wellendichtring
--F20142 Welle
--F20144 Druckfeder
--F20140 Bolzen

Mengenventil Exploded View for Ruhle PR20 No 2786 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F41722	Grohe adjusting valve	PR 8 - 20	1
2	F22560	Pressure Spring	Ø 1,5 x De28 x 50	1
3	F20047	Hexagonal Nut	DIN439 M 10	2
4	F20145	Flange	Ø 80 x 45	1
5	F29317	O-ring	Ø 24 x 3	1
6	F22570	Radial shaft seal	Ø 14 x Ø 26 x 7	1
7	F20142	Shaft	Ø 17 x 102	1
8	F20144	Pressure Spring	Ø 1,8 x De16 x 35	1
9	F20140	bolt	Ø 25 x 65	1
