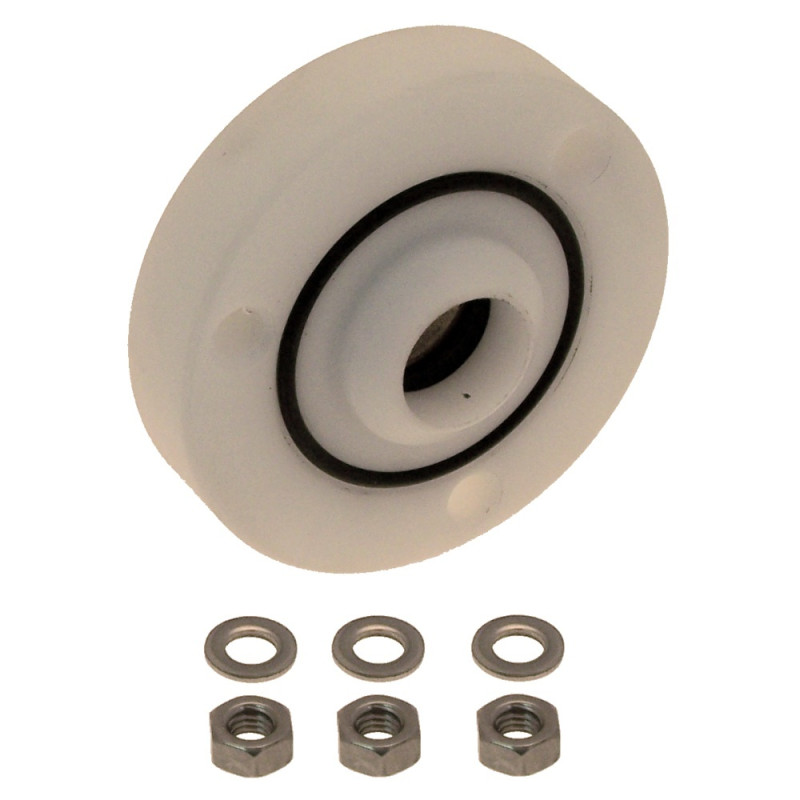

Flange Exploded View 1
Pos. No. | Part No. | Description | Add. Info | Required | |
---|---|---|---|---|---|
1 | F29337 | Flange | Ø 20,1 x Ø 75 x 33 | 1 | |
2 | F28030 | Radial shaft seal | Ø 20 x Ø 28 x 6 | 1 | |
3 | F252423 | Slide bushing | DIN2795 Ø 20 x Ø 28 x 16 | 1 | |
4 | F20157 | O-Ring | Ø 42 x 2,5 | 1 | |
5 | F20258 | Washer | DIN125 A 6,4 | 3 | |
6 | F20203 | Hexagonal nut | DIN934 M 6 | 3 |
