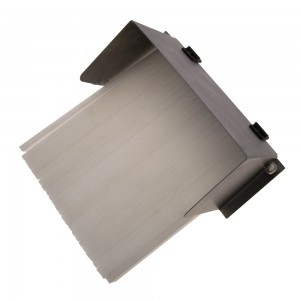

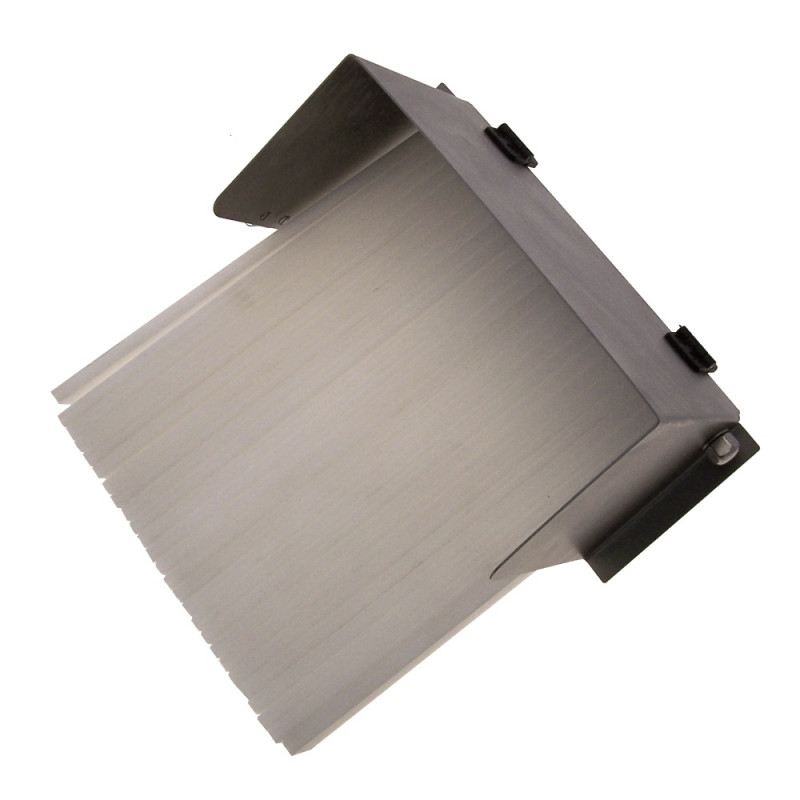

Protective Guard Complete Ruhle IR17 No. 235 and higher

Type: 109088
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1345

* Eingreifschutz Complete IR 17 no. 235 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Protective Guard Complete Ruhle IR17 No. 235 and higher

Type: 109088
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1345

* Eingreifschutz Complete IR 17 no. 235 and higher:
--109086 Eingreifschutz
-- 109281 Welle
-- 109668 Schutzlasche
--109168 Schutzlasche
--109666 Ring
--F27693 U-Scheibe
--F20811 Hutmutter
-- 109562 Aufnahme
-- F20426 Magnet
--109407 Senkschraube

Protective Guard Complete for Ruhle IR17

Pos No.	Part No.	Description	Add Info	Required
1	109086	Protective Guard	309 x 147 x 133,5 x 1,5	1
2	109281	Shaft	Ø 10 x 298	1
3	109668	Protective lug	317 x 22 x 10	2
4	109168	Protective lug	320 x 22 x 10	24
5	109666	RIng	Ø 10,5 x Ø 15 x 8	2
6	F27693	Washer	DIN125 A 10,5	2
7	F20811	Cap nut	DIN917 M 10	2
8	109562	Solenoid housing	35 x 15 x 16	1
9	F20426	Solenoid	Ø 10 x 10	1
10	109407	Countersunk head screw	DIN7972 3,9 x 9,5	2

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Protective Guard Complete for Ruhle IR17

Pos No.	Part No.	Description	Add Info	Required
1	109086	Protective Guard	309 x 147 x 133,5 x 1,5	1
2	109281	Shaft	Ø 10 x 298	1
3	109668	Protective lug	317 x 22 x 10	2
4	109168	Protective lug	320 x 22 x 10	24
5	109666	RIng	Ø 10,5 x Ø 15 x 8	2
6	F27693	Washer	DIN125 A 10,5	2
7	F20811	Cap nut	DIN917 M 10	2
8	109562	Solenoid housing	35 x 15 x 16	1
9	F20426	Solenoid	Ø 10 x 10	1
10	109407	Countersunk head screw	DIN7972 3,9 x 9,5	2
