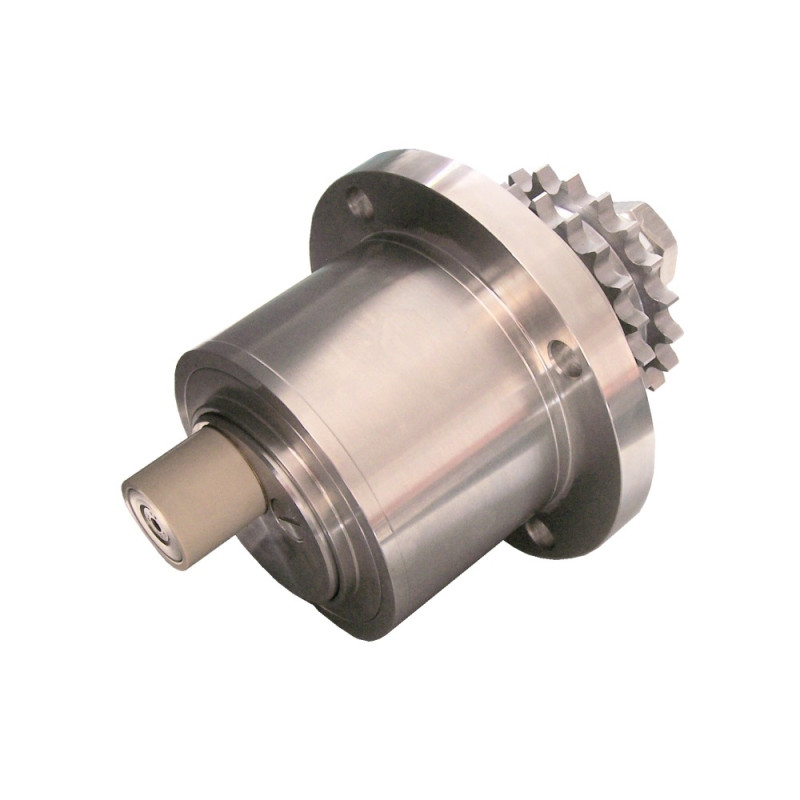

Eccentric Shaft Complete SR3 Dicer No. 35 and Higher
Type: 106495
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1101
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1101
Note: Shipping to be Determined.
Eccentric Shaft Complete SR3 Dicer No. 35 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F28212 | Housing | Ø 140 x 100 | 1 |
 |
2 | F20842 | Tapered ball bearing | DIN628 - 3209 2RS | 2 |
 |
3 | F28208 | Spacers | Ø 45,5 x Ø 57 x 29,6 | 1 |
 |
4 | F28213 | Take-up ring | Ø 58 x Ø 88 x 15 | 1 |
 |
5 | F26818 | Disc | Ø 20,5 x Ø 45 x 5 | 2 |
 |
6 | F29384 | Eccentric shaft | Ø 45 x 149 | 1 |
 |
7 | F28205 | Ring | Ø 40,5 x Ø 60 x 10 | 1 |
 |
8 | F26886 | Chain wheel | Ø 35.7 x Ø 85.8 x 21 | 1 |
 |
9 | F26798 | Disc | Ø 20,5 x Ø 60 x 5 | 1 |
 |
10 | F20450 | Hexagonal nut | DIN934 M 20 x 1,5 | 1 |
 |
11 | F26897 | Hexagonal nut | DIN439 M 20 x 1,5 | 1 |
 |
12 | 106496 | Roller | SR 3 Servo | 1 |
 |
13 | F26815 | Radial shaft seal | Ø 50 x Ø 65 x 8 | 1 |
