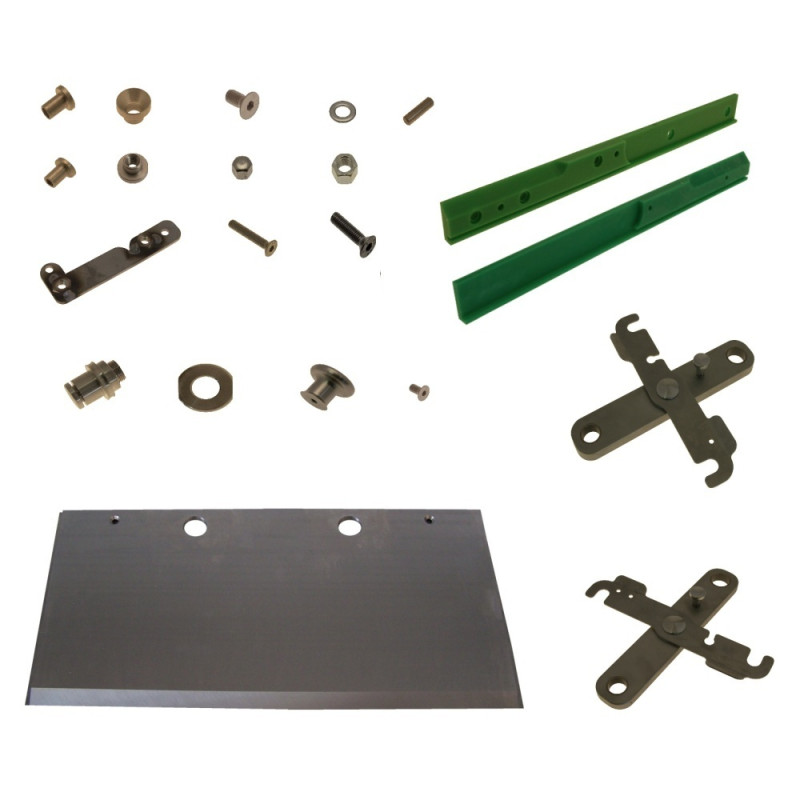

Duct Lock Complete 1 Ruhle SR3 No. 35 and Higher
Type: 102789
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1131
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1131
Note: Shipping to be Determined.
Duct Lock Complete 1 Ruhle SR3 No. 35 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F254551 | Rail | 487 x 40 x 15 | 1 |
 |
2 | F254552 | Rail | 487 x 40 x 15 | 1 |
 |
3 | F28493 | Pin | Ø 8 x 27 | 4 |
 |
4 | F28582 | Countersunk bolt | DIN7991 M 6 x 25 | 5 |
 |
5 | F20203 | Hexagonal nut | DIN934 M 6 | 2 |
 |
6 | F20258 | Washer | DIN125 A 6,4 | 2 |
 |
7 | F20453 | Countersunk bolt | DIN7991 M 6 x 20 | 2 |
 |
8 | F20810 | Cap nut | DIN917 M 6 | 1 |
 |
9 | F28583 | Countersunk bolt | DIN7991 M 6 x 35 | 3 |
 |
10 | 106692 | bushing | Ø 6,2 x Ø 14 x 7,4 | 2 |
 |
11 | 106694 | bushing | Ø 6,2 x Ø 14 x 7,4 | 2 |
 |
12 | 106691 | bushing | Ø 6,2 x Ø 14 x 14,9 | 3 |
 |
13 | 106693 | bushing | Ø 6,2 x Ø 14 x 14,9 | 3 |
 |
14 | F41885 | Starting sheet | SR 3 | 1 |
 |
15 | F41849 | Knife | SR 3 | 1 |
 |
16 | F445358 | Lever | SR 3 | 1 |
 |
17 | F41851 | Lever | SR 3 | 1 |
