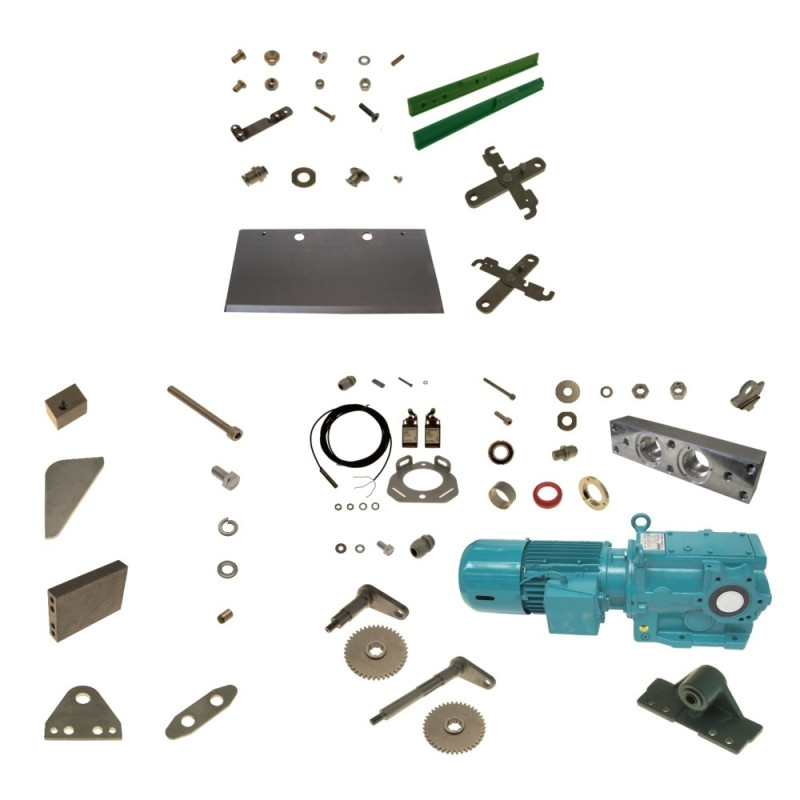

Duct Lock Assembly Ruhle SR3 No. 35 and Higher
Pos No. | Part No. | Description | Add Info | Required | |
1 | 102789 | Duct lock | SR 3 Servo | 1 | |
2 | F41852 | Duct lock | SR 3 | 1 | |
3 | F28555 | Plate | 55 x 35 x 29.3 | 1 | |
4 | F29378 | plate / sheet | 60 x 90 x 5 | 2 | |
5 | F28552 | Plate | 80 x 20 x 120 | 1 | |
6 | F23528 | plate / sheet | 80 x 75 x 6 | 1 | |
7 | F28560 | plate / sheet | 72 x 20 x 3 | 1 | |
8 | F26338 | Cylindrical pin | ISO8734 - Ø 8 m6 x 14 | 2 | |
9 | F27693 | Washer | DIN125 A 10,5 | 2 | |
10 | F26379 | Spring lock washer | DIN127 B 10 | 2 | |
11 | F22138 | Hexagonal bolt | DIN933 M10 x 25 | 2 | |
12 | F28563 | Cylinder head screw | DIN912 M16 x140 | 1 |
