Drive Shaft Exploded View IR56 Meat Injector

Type: F42188
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1426

* Drive Shaft Exploded View 2 IR 56:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Drive Shaft Exploded View IR56 Meat Injector

Type: F42188
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1426

* Drive Shaft Exploded View 2 IR 56:
-- F21511 Flange bearing
--F42325 Starting sheet
-- F27693 Washer
--F20402 Hexagonal bolt
--F29088 Clamping element
-- F29087 Shaft
-- F20831 Spring key
-- 101080 Disc
--F29400 Chain wheel

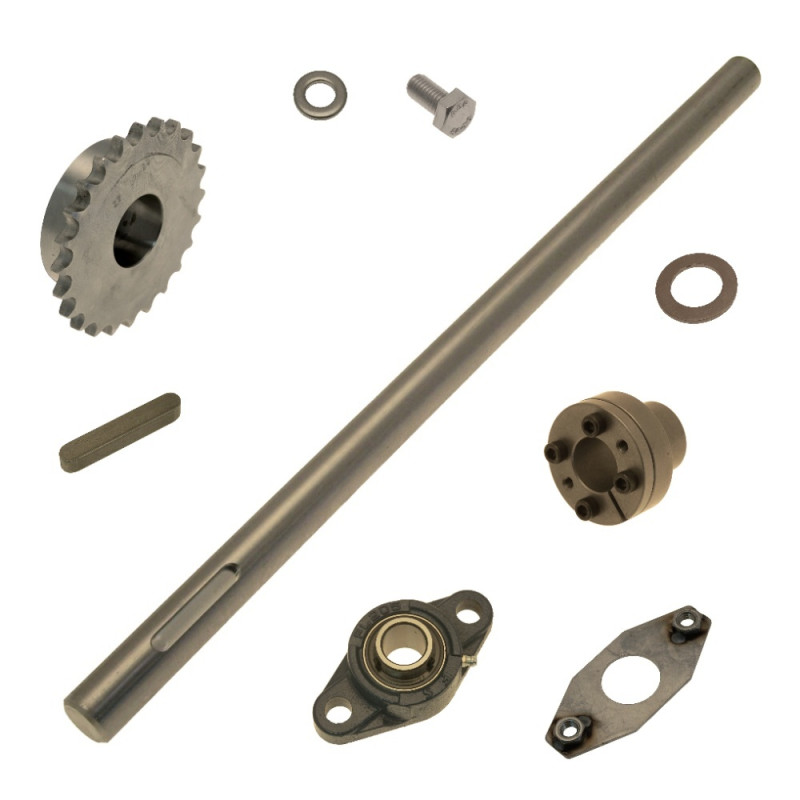

Drive Shaft Exploded View for Ruhle IR56 Meat Injector

Pos No.	Part No.	Description	Add Info	Required
1	F21511	Flange bearing	UCFL 205	2
2	F42325	Starting sheet	IR 28/56	2
3	F27693	Washer	DIN125 A 10,5	4
4	F20402	Hexagonal bolt	DIN933 M10 x 30	4
5	F29088	Clamping element	kon.RLK 25 x 34	2
6	F29087	Shaft	Ø 25 x 555	1
7	F20831	Spring key	A 8 x 7 x 50	1
8	101080	Disc	Ø 25,5 x 40 x 2,5	1
9	F29400	Chain wheel	Ø 34 Z 24	2
