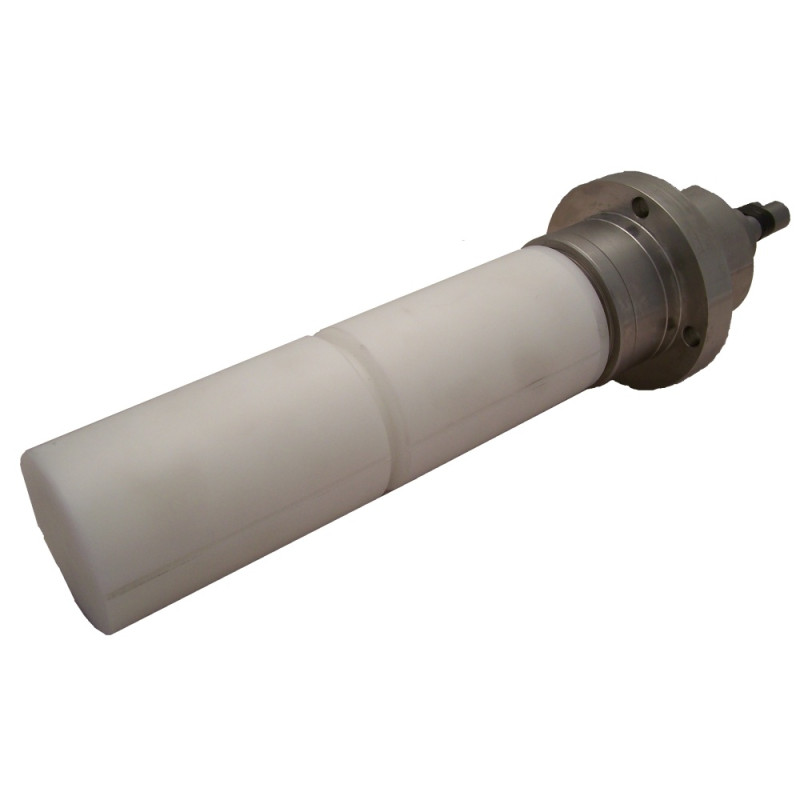

Drive Exploded View SR2 Turbo Dicer

Type: F441364ex
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 686

Note: Shipping to be Determined.

* Drive Exploded View:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Drive Exploded View SR2 Turbo Dicer

Type: F441364ex
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 686

Note: Shipping to be Determined.

* Drive Exploded View:
--F26809 Housing
--F23386 Schrägkugellager
--F26811 Ring
--F26814 Take-up ring
--F240658 Ring
--F28057 Radial shaft seal
--F26813 Scheibe
--F240655 Drive Shaft
--F240654 Bushing
--F22915 Spring key

Drive Exploded View for Ruhle SR2 Turbo

Pos No.	Part No.	Description	Add Info	Required
1	F26809	Housing	Ø 120 x 111,5	1
2	F23386	Tapered ball bearing	DIN628 - 3207 2RS	2
3	F26811	Ring	Ø 35,5 x Ø 45 x 40,5	1
4	F26814	Take-up ring	Ø 50 x Ø 72 x 20	1
5	F240658	Ring	Ø 18 x Ø 40 x 20	1
6	F28057	Radial shaft seal	Ø 50 x Ø 65 x 8	2
7	F26813	Disc	Ø 55 x Ø 71 x 2	1
8	F240655	Drive Shaft	Ø 50 x 350	1
9	F240654	Bushing	Ø 80 x 267	1
10	F22915	Spring key	A 6 x 6 x 40	1

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Drive Exploded View for Ruhle SR2 Turbo

Pos No.	Part No.	Description	Add Info	Required
1	F26809	Housing	Ø 120 x 111,5	1
2	F23386	Tapered ball bearing	DIN628 - 3207 2RS	2
3	F26811	Ring	Ø 35,5 x Ø 45 x 40,5	1
4	F26814	Take-up ring	Ø 50 x Ø 72 x 20	1
5	F240658	Ring	Ø 18 x Ø 40 x 20	1
6	F28057	Radial shaft seal	Ø 50 x Ø 65 x 8	2
7	F26813	Disc	Ø 55 x Ø 71 x 2	1
8	F240655	Drive Shaft	Ø 50 x 350	1
9	F240654	Bushing	Ø 80 x 267	1
10	F22915	Spring key	A 6 x 6 x 40	1
