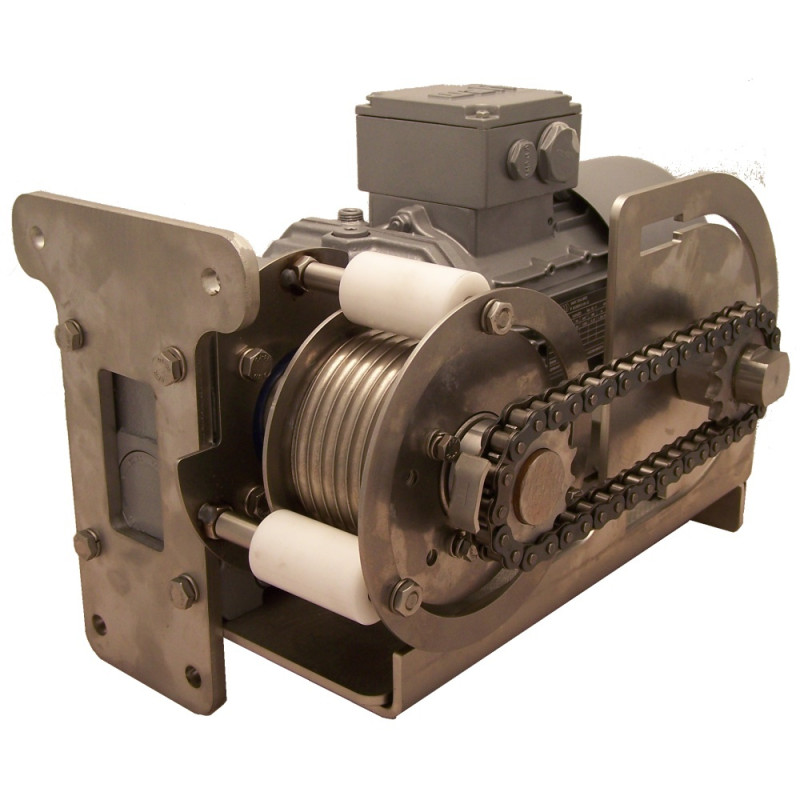

Drive Exploded View Ruhle SR2 No. 435
Type: F441265
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 930
Note: Shipping to be Determined.
*
Drive Exploded View 5 SR2-Turbo No. 435:
--F250771 Plate / Sheet
--F21260 Federring
--F22449 Sechskantschraube
--F241268 Plate / Sheet
--F441495 Starting sheet
-- F26600 Scheibe
--F20370 Slide bushing
--F252521 Chain wheel
--F241271 Bolt
--F22916 Washer
--F22918 Spring lock washer
--F20205 Sechskantmutter
--F241274 Shaft
--F22615 Spring key
--F24389 Spring key
-- F21300 Clamping ring
--F22621 Cylinder head screw
--F441275 Starting sheet
--F21281 Sechskantschraube
--F241276 Shaft
--F241273 Ring
--F241280 Rolle
--F241279 Disc
--F20258 Washer
--F24031 Spring lock washer
--F20417 Hexagonal bolt
-- F241277 Rolle
--F241278 Disc
--F240582 Disc
--F26536 Hexagonal nut
--F252522 Chain wheel
--F25432 Gewindestift
--F20687 Hexagonal bolt
--100491 Chain
--F29039 Gear motor with break
--F29057 Cable gland
--F20948 Cable gland
