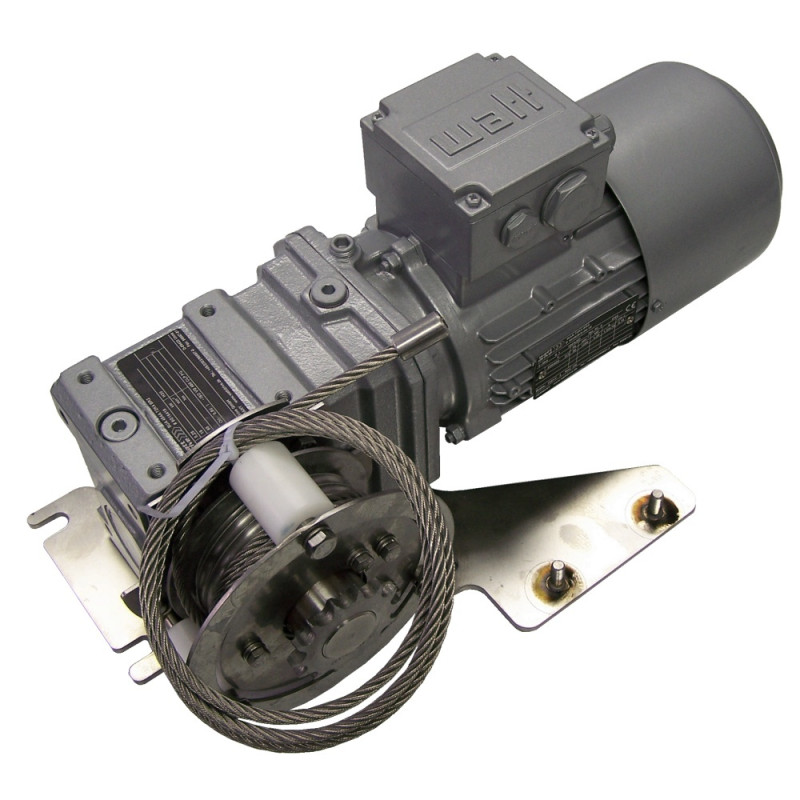

Drive Complete 4 IR56 Injector No. 210 and Higher

Type: F440961
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2421

* Drive Complete 4 IR 56 No. 210 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Drive Complete 4 IR56 Injector No. 210 and Higher

Type: F440961
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2421

* Drive Complete 4 IR 56 No. 210 and higher:
--F441275 Starting sheet
--104183 Housing
--F21281 Hexagonal bolt
--F22888 Washer
--F21260 Spring lock washer
--101185 Drive shaft
--F240581 Tube
--F29343 Rolle
--F240582 Disc
--F27299 Hexagonal bolt
--F440963 Rolle
--F240583 Disc
--F22860b Disc
--F20217 Locking ring
--F20831 Spring key
--F22907 Disc
--F29039 Gear motor with break
--F29057 Cable gland

Drive Complete 4 IR56 Injector No. 210 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F441275	Starting sheet	IR 56 / SR 2 T	1
2	104183	Housing	IR 56	1
3	F21281	Hexagonal bolt	DIN933 M 8 x 16	8
4	F22888	Washer	DIN125 A 8,4	4
5	F21260	Spring lock washer	DIN127 B 8	7
6	101185	Drive shaft	IR 56	1
7	F240581	Tube	Ø 10 x 1 x 58	3
8	F29343	Rolle	Ø 10,2 x Ø 30 x 41	3
9	F240582	Disc	Ø 120 x Ø 150 x 2,5	1
10	F27299	Hexagonal bolt	DIN933 M 8 x 70	3
11	F440963	Rolle	IR 56	1
12	F240583	Disc	Ø 30,5 x Ø 45 x 2,5	1
13	F22860b	Disc	Ø 30 x Ø 42 x 0,5	1
14	F20217	Locking ring	DIN471 Ø 30 x 1,5	1
15	F20831	Spring key	A 8 x 7 x 50	2
16	F22907	Disc	Ø 10,5 x Ø 35 x 3	4
17	F29039	Gear motor with break	SUA 454A-72K4 BR2	1
18	F29057	Cable gland	M 25 x 1.5	2
