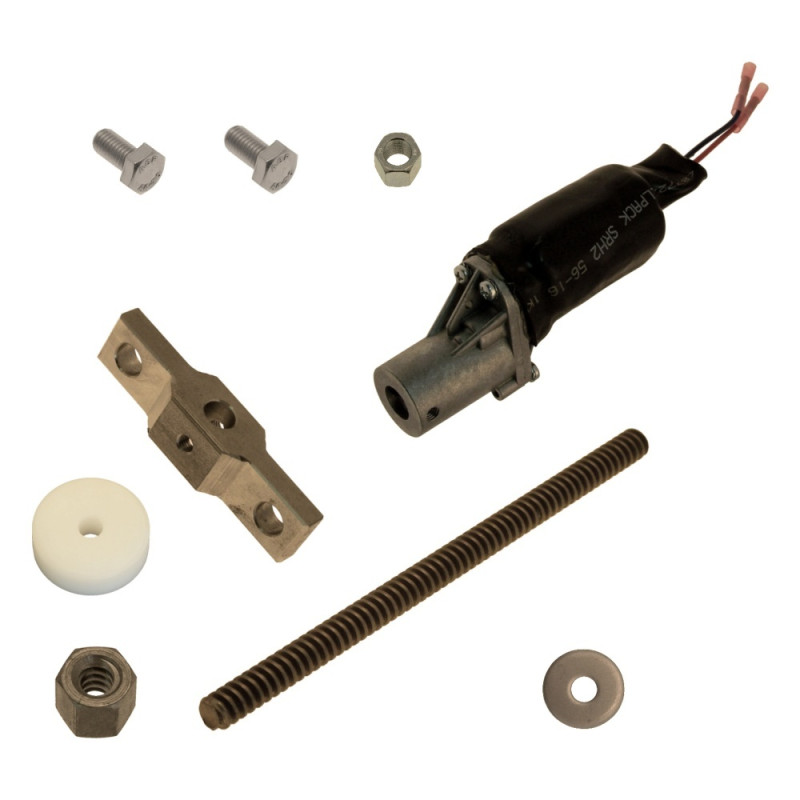

Drive Exploded View IR56 Injector

Type: F42344
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1423

* Drive Exploded View 2 IR 56:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Drive Exploded View IR56 Injector

Type: F42344
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1423

* Drive Exploded View 2 IR 56:
--F444874 Mini hub drive
--F20203 Hexagonal nut
--F24522 Hexagonal bolt
--F21385 Hexagonal bolt
--F21035 Disc
-- F29332 Rolle
--F29335 Lever
--F29336 Threaded rod
--F29340 Hexagonal nut

Drive Exploded View for IR56

Pos No.	Part No.	Description	Add Info	Required
1	F444874	Mini hub drive	MHG 100/50	1
2	F20203	Hexagonal nut	DIN934 M 6	3
3	F24522	Hexagonal bolt	DIN933 M 6 x 25	3
4	F21385	Hexagonal bolt	DIN933 M 6 x 30	1
5	F21035	Disc	Ø 6,5 x Ø 20 x 2	1
6	F29332	Rolle	Ø 6,1 x Ø 30 x 10	1
7	F29335	Lever	85 x 20 x 20	1
8	F29336	Threaded rod	TR10 x 3 x 180	1
9	F29340	Hexagonal nut	DIN EN 28673 TR 10 x 3	2
