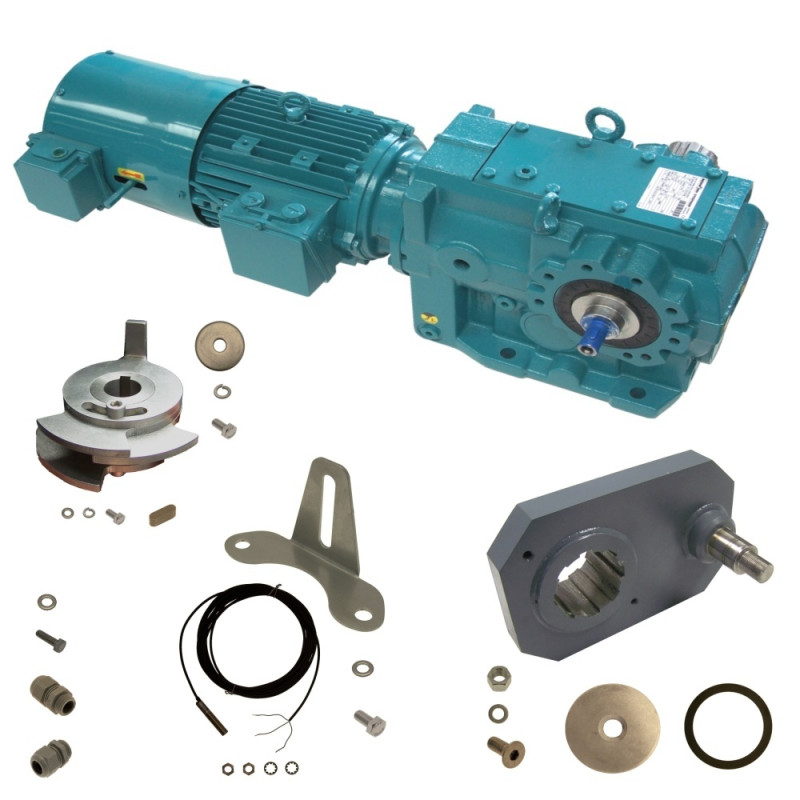

Drive Complete 1 SR3 Dicer No. 35 and Higher
Pos No. | Part No. | Description | Add Info | Required | |
1 | F20230 | Hexagonal bolt | DIN933 M12 x 40 | 7 | |
2 | F20202 | Washer | DIN125 A 13 | 7 | |
3 | 102796 | Lever | SR 3 | 1 | |
4 | 102797 | Signal plate | SR 3 Servo | 1 | |
5 | 104372 | bracket with cable | SR 3 | 1 | |
6 | F27654 | Gear motor with break | SKTN46C100-G-100A-4BFG-T-4 | 1 | |
7 | F29058 | Cable gland | M 20 x 1.5 | 2 | |
8 | F20948 | Cable gland | M 16 x 1.5 | 1 | |
9 | F28352 | Hexagonal bolt | DIN933 M20 x 60 | 1 | |
10 | F26903 | Spring lock washer | DIN127 B 20 | 1 | |
11 | F26798 | Disc | Ø 20,5 x Ø 60 x 5 | 2 |
