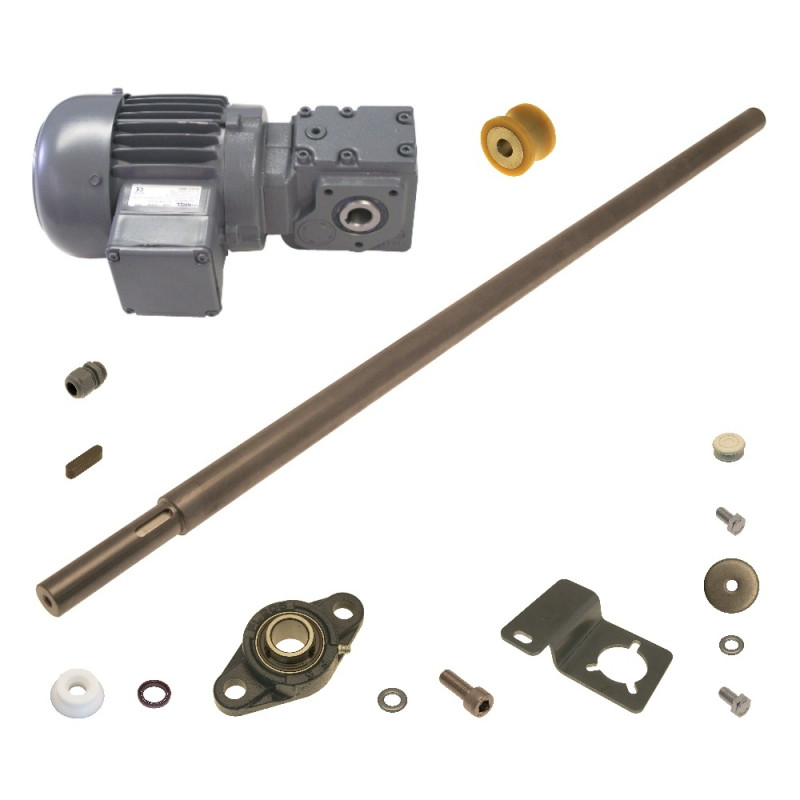

Drive Complete SR3 Dicer 104681
Type: 104681
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1045
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1045
Note: Shipping to be Determined.
Drive Complete SR3 Dicer No. 70 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F22992 | Spring key | A 6 x 6 x 25 | 1 |
 |
2 | F28570 | Ring | Ø 25,5 x Ø 80 x 22 | 2 |
 |
3 | F23692 | Radial shaft seal | Ø 25 x Ø 35 x 6 | 2 |
 |
4 | F21511 | Flange bearing | UCFL 205 | 2 |
 |
5 | F27693 | Washer | DIN125 A 10,5 | 4 |
 |
6 | F21101 | Cylinder head screw | DIN912 M10 x 20 | 4 |
 |
7 | F28571 | Bracket | 163 x 125 x 39 | 1 |
 |
8 | F21281 | Hexagonal bolt | DIN933 M 8 x 16 | 3 |
|
9 | F22888 | Washer | DIN125 A 8,4 | 3 |
 |
10 | F22116 | Disc | Ø 6,5 x Ø 30 x 3 | 1 |
|
11 | F26033 | Hexagonal bolt | DIN933 M 6 x 20 | 1 |
 |
12 | F24604 | Cable sleeve | KT 13.5 | 2 |
 |
13 | F28572 | Shaft | Ø 25 x 840 | 1 |
 |
14 | F41881 | Wheel | SR 3 | 2 |
 |
15 | F28609 | Gear motor | C10-56-M4 | 1 |
 |
16 | F29058 | Cable gland | M 20 x 1.5 | 1 |
