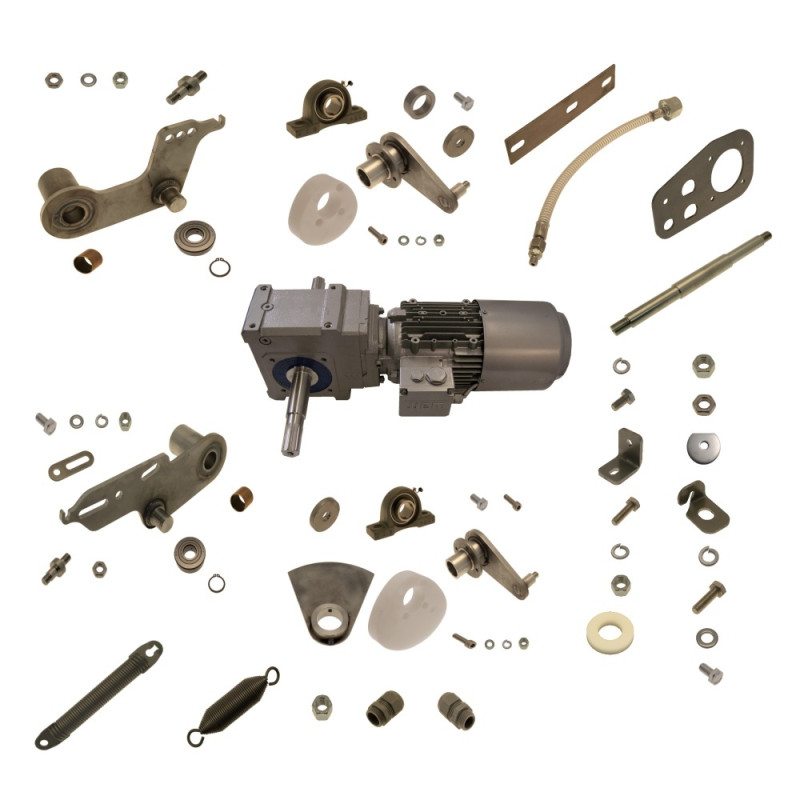

Drive Assembly Ruhle IR56 Injector

Type: F42137
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1390

* Drive Assembly IR 56:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Drive Assembly Ruhle IR56 Injector

Type: F42137
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1390

* Drive Assembly IR 56:
--F441213 Venting
--F29385 Plate / Sheet
--F240227 Shaft
--F26379 Spring lock washer
--F20954 Hexagonal bolt
--F240220 Bracket
--F20693 Hexagonal bolt
--F20204 Hexagonal nut
-- F42362 bearing
--F240232 Ring
--F240232 Ring
--101030 Lever
-- F20450 Hexagonal nut
-- F441416 bearing
-- 101033 Lever
-- F20450 Hexagonal nut
-- F26897 Hexagonal nut
--F240911 Plate / Sheet
--F21024 Disc
-- F242045 Hook
-- F20210 Spring lock washer
-- F20210 Spring lock washer
-- F20692 Hexagonal bolt
-- F20202 Washer
-- F20323 Hexagonal bolt
-- F24518 Spring
-- F445694 Spring
--F20204 Hexagonal nut
--F29034 Gear motor
--F29057 Cable gland
--F20948 Cable gland

Drive Assembly Ruhle IR56 Injector

Pos No.	Part No.	Description	Add Info	Required
1	F441213	Venting	IR 28/56	1
2	F29385	Plate / Sheet	270 x 160 x 5	2
3	F240227	Shaft	Ø 30 x 368	1
4	F26379	Spring lock washer	DIN127 B 10	8
5	F20954	Hexagonal bolt	DIN933 M10 x 20	8
6	F240220	Bracket	65 x 65 x 50	2
7	F20693	Hexagonal bolt	DIN933 M10 x 35	2
8	F20210	Spring lock washer	DIN127 B 12	2
9	F20204	Hexagonal nut	DIN934 M 12	2
10	F42362	bearing	IR 28/56	1
11	F240232	Ring	Ø 25,2 x Ø 50 x 6	2
12	101030	Lever	IR 28/56	1
13	F20450	Hexagonal nut	DIN934 M 20 x 1,5	1
14	F441416	bearing	IR 28/56	1
15	F240232	Ring	Ø 25,2 x Ø 50 x 6	2
16	101033	Lever	IR 28/56	1
17	F20450	Hexagonal nut	DIN934 M 20 x 1,5	1
18	F26897	Hexagonal nut	DIN439 M 20 x 1,5	2
19	F240911	Plate / Sheet	270 x 50 x 3	2
20	F21024	Disc	Ø 13 x Ø 35 x 5	4
21	F242045	Hook	45,2 x 30 x 22	1
22	F20210	Spring lock washer	DIN127 B 12	6
23	F20692	Hexagonal bolt	DIN933 M12 x 50	4
24	F20202	Washer	DIN125 A 13	2
25	F20323	Hexagonal bolt	DIN933 M12 x 25	2
26	F24518	Spring	d 2,0 x De27 x 85	1
27	F445694	Spring	IR 28/56 / IR 112	1
28	F20204	Hexagonal nut	DIN934 M 12	2
29	F29034	Gear motor	SUZ 506A-91L2 BR10	1
30	F29057	Cable gland	M 25 x 1.5	1
31	F20948	Cable gland	M 16 x 1.5	1
