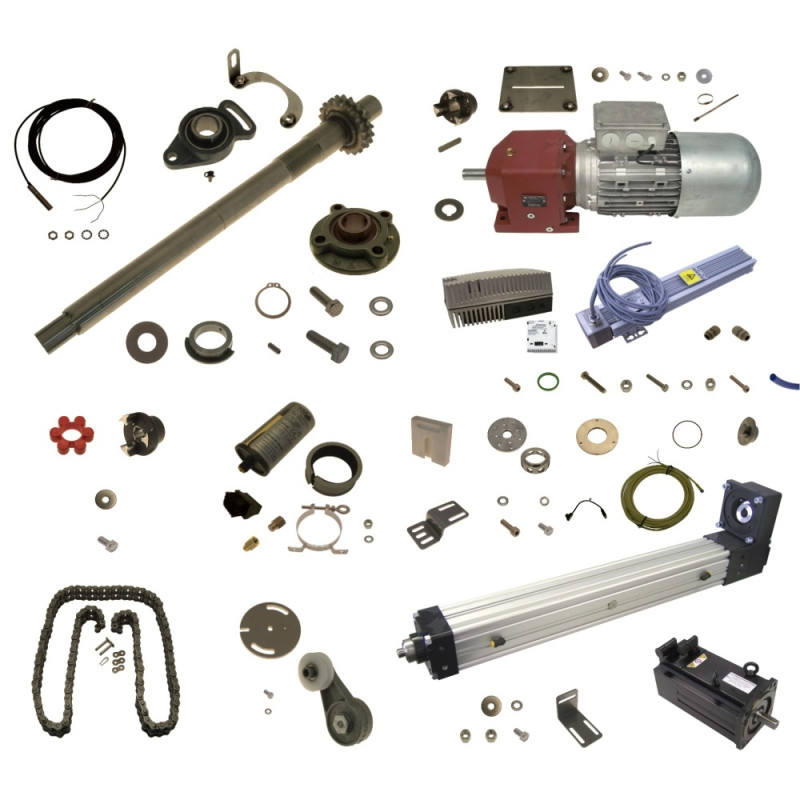

Drive Assembly SR3 Dicer No. 70 and Higher

Type: 106492
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1010

Note: Shipping to be Determined.

* Drive Assembly SR3 Lifting unit for No. 70 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Drive Assembly SR3 Dicer No. 70 and Higher

Type: 106492
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1010

Note: Shipping to be Determined.

* Drive Assembly SR3 Lifting unit for No. 70 and higher:
--106493 drive
--F242952 intermediate ring
--F451234 Drive shaft
--104716 Chain tightener
--F256867 Double chain
--F40817 Lubrication
--102786 Servo drive
-- F28218a Coupling wedge profile
--F22907 Disc
--F22138 Hexagonal bolt

Drive Assembly SR3 Dicer No. 70 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	106493	drive	SR 3 Servo	1
2	F242952	intermediate ring	S85 VkR	1
3	F451234	Drive shaft	SR 3	1
4	104716	Chain tightener	SR 3	1
5	F256867	Double chain	1/2 x 5/16	1
6	F40817	Lubrication	SR 3	1
7	102786	Servo drive	SR 3 Servo	1
8	F28218a	Coupling wedge profile	Ø 60 x Ø 85 x 64	1
9	F22907	Disc	Ø 10,5 x Ø 35 x 3	1
10	F22138	Hexagonal bolt	DIN933 M10 x 25	1
