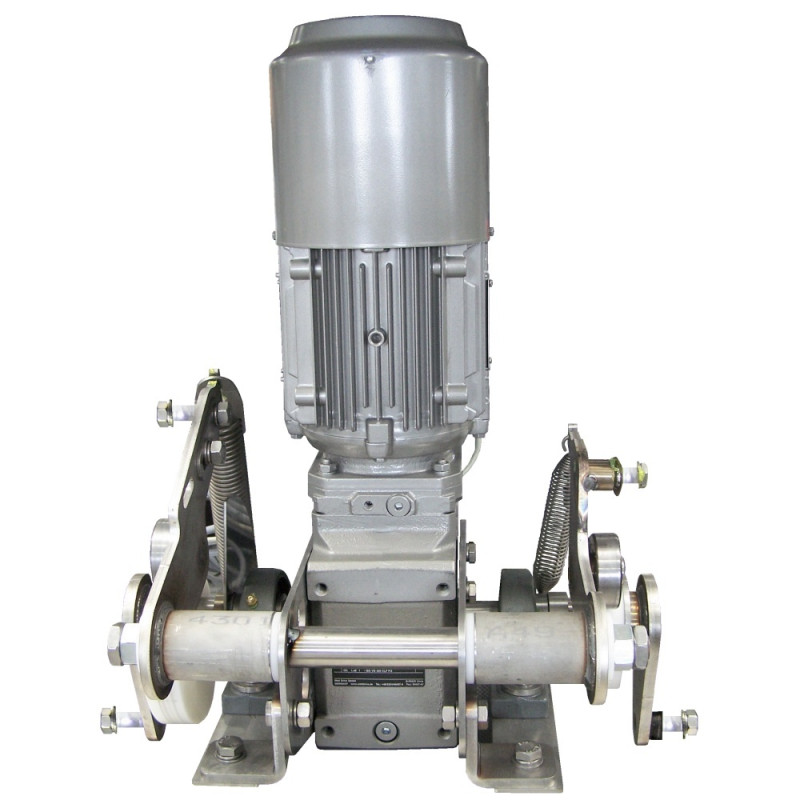

Drive Assembly IR56 No. 473 and Higher

Type: 105909
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1669

* Drive Assembly IR 56 Facelift No. 473 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Drive Assembly IR56 No. 473 and Higher

Type: 105909
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1669

* Drive Assembly IR 56 Facelift No. 473 and higher:
--105687 Shaft
--105871 Lever
-- 105873 Lever
-- 105876 Storage
--105878 Storage
--F240232 Ring
--F29385 plate / sheet
--F240220 Bracket
--F240911 plate / sheet
-- F242045 Hook
--F24518 Spring
-- F445694 Spring
-- F26379 Spring lock washer
--F20954 Hexagonal bolt
--F20210 Spring lock washer
-- F20204 Hexagonal nut
--F20323 Hexagonal bolt
--F20692 Hexagonal bolt
-- F20230 Hexagonal bolt
--F21024 Disc
-- F20202 Washer
-- F20450 Hexagonal nut
--F26897 Hexagonal nut
--F240327 Bracket
-- F29156 proximity switch
-- 105886 Gear motor
--106578 Programmed FC 2.2kW
-- F20698 Cable
-- 106619 Cable
-- 106619 Cable
-- F27425 Cable
--106134 Cable FC value beam drive
--F29057 Cable gland
--F20948 Cable gland
--104152 Cable gland
--F25780 Hexagonal nut
--F23034 Cylinder head screw
-- F20570 Washer
-- F21045 Washer
--F29058 Cable gland

Drive Assembly IR56 No. 473 and Higher

Pos No.	Part No.	Description	Add info	Required
1	105687	Welle	Ø 30 x 388	1
2	105871	Lever	IR 56	1
3	105873	Lever	IR 56	1
4	105876	Storage	IR 56	1
5	105878	Storage	IR 56	1
6	F240232	Ring	Ø 25,2 x Ø 50 x 6	4
7	F29385	plate / sheet	270 x 160 x 5	2
8	F240220	Bracket	65 x 65 x 50 x 8	2
9	F240911	plate / sheet	270 x 50 x 3	2
10	F242045	Hook	45,2 x 30 x 22	1
11	F24518	Spring	Ø 2,0 x De27 x 85	1
12	F445694	Spring	IR 28/56 / IR 112	1
13	F26379	Federring	DIN127 B 10	8
14	F20954	Hexagonal bolt	DIN933 M 10 x 20	8
15	F20210	Spring Washer	DIN127 A 12	8
16	F20204	Hexagonal nut	DIN934 M 12	2
17	F20323	Hexagonal bolt	DIN933 M 12 x 25	2
18	F20692	Hexagonal bolt	DIN933 M 12 x 50	4
19	F20230	Hexagonal bolt	DIN933 M 12 x 40	2
20	F21024	Disc	Ø 13 x Ø 35 x 5	4
21	F20202	Washer	DIN125 A 13	2
22	F20450	Hexagonal nut	DIN934 M 20 x 1,5	2
23	F26897	Hexagonal nut	DIN439 M 20 x 1,5	2
24	F240327	Bracket	70 x 57,5 x 30	1
25	F29156	Initiator	BI8U-M18-AP6X 7M	1
26	105886	Gear motor	SUZ 506A-91L2 BR10	1
27	106578	Programmed FC 2.2kW	E82MV222_4B001	1
28	F20698	Cable	ÖZ-J 4 x 1.5 mm²	2.5 m
29	106619	Cable	Liycy 7 x 0.5 mm²	2.1 m
30	106619	Cable	Liycy 7 x 0.5 mm²	2.1 m
31	F27425	Cable	ÖZ-J 5 x 1.5 mm²	2.2 m
32	106134	Cable FC value beam drive	IR 28/56 Facelift	1
33	F29057	Cable gland	M 25 x 1.5	1
34	F20948	Cable gland	M 16 x 1.5	3
35	104152	Cable gland	PERFECT-KV-EMV M20x1.5	1
36	F25780	Hexagonal nut	M 20 x 1,5	1
37	F23034	Cylinder head screw	DIN84 M 4 x 35	4
38	F20570	Washer	DIN125 A 4,3	4
39	F21045	Washer	DIN125 A 5,3	4
40	F29058	Cable gland	M 20 x 1,5	1
