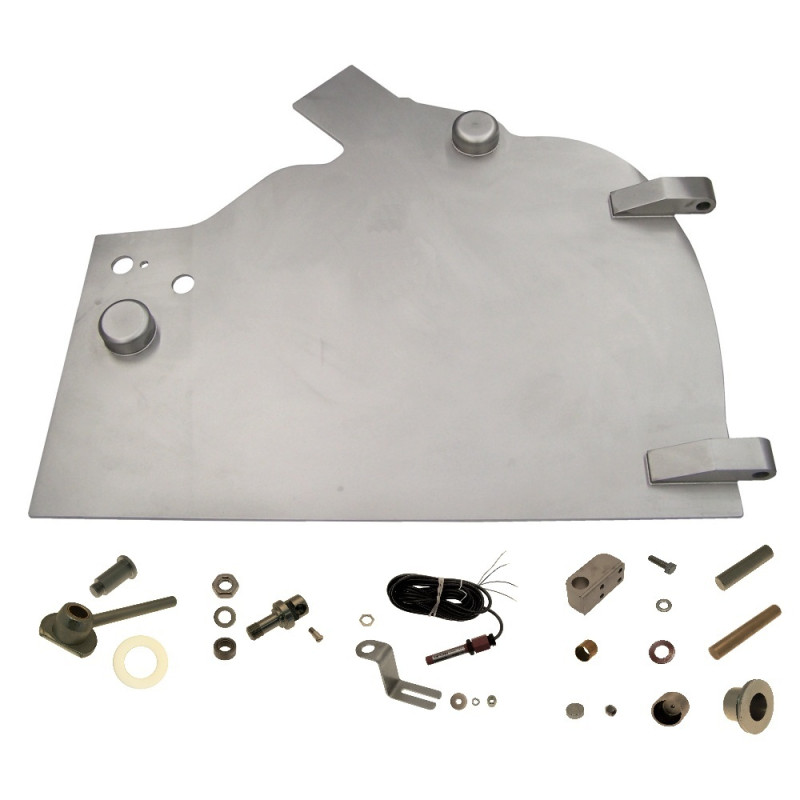

Door Complete for Meat Dicer Ruhle SR3 with No. 70 and higher
Pos No. | Part No. | Description | Add Info | Required | |
1 | F42191 | door | SR 3 | 1 | |
2 | F29207 | Hinge | 108 x 50 x 50 | 3 | |
3 | F26803 | Slide bearing | DIN1850 - J25 x 28 x 25 | 6 | |
4 | F20230 | Hexagonal bolt | DIN933 M12 x 40 | 12 | |
5 | F20202 | Washer | DIN125 A 13 | 12 | |
6 | F29208 | Ring | Ø 25,5 x Ø 46 x 3 | 3 | |
7 | F29209 | Shaft | Ø 25 x 104 | 1 | |
8 | F21478 | Shaft | Ø 25 x 157 | 1 | |
9 | F28379 | bushing | Ø 89 x 55 | 1 | |
10 | F24597 | bushing | Ø 59 x 45 | 1 | |
11 | F28531 | Threaded pin | DIN914 M 6 x 6 | 2 | |
12 | F27527 | Solenoid | Ø 15 x 5 | 1 | |
13 | 104629 | Lock | SR 3 | 1 | |
14 | F42282 | Lock | SR 3 | 1 | |
15 | F41031 | bracket with cable | SR 3 | 1 |
