Deckelgetriebe Assembly - MGR 900
Type: 107969
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2602
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2602
Note: Shipping to be determind.

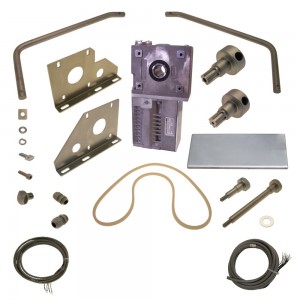

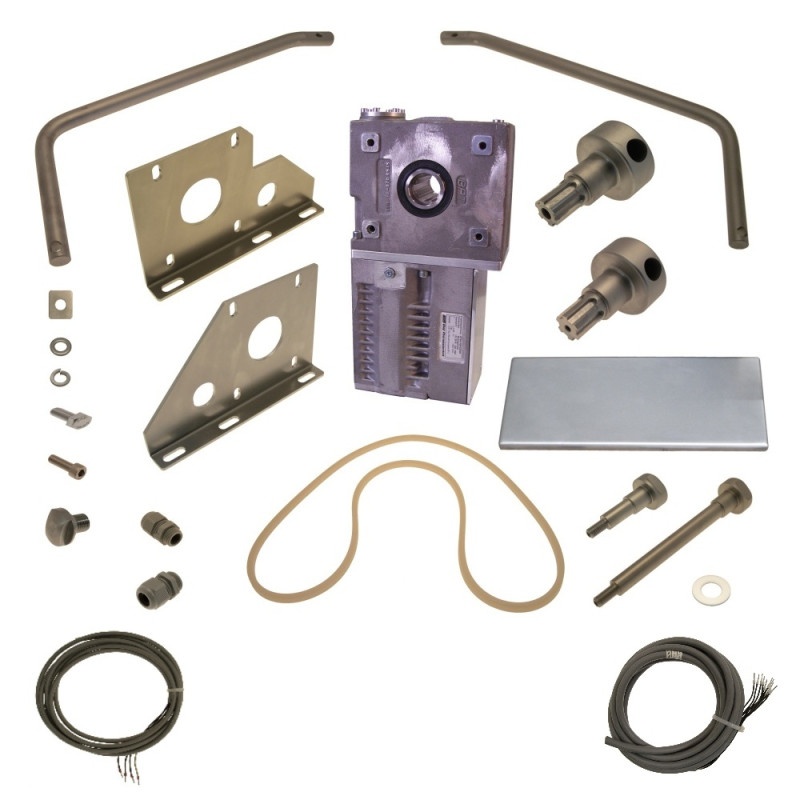

Deckelgetriebe Assembly
| Pos. No. | Part No. | Description | Add. Info | Required | |
|---|---|---|---|---|---|
 |
1 | 107732 | Winkel | 295 x 184,3 x 5 | 1 |
 |
2 | 107337 | Welle | Ø 100 x 152 | 1 |
 |
3 | 107336 | Welle | Ø 100 x 152 | 1 |
 |
4 | 105240 | Bolzen | Ø 35 x 85 | 1 |
 |
5 | 107335 | Ring | Ø 95 x Ø 50,3 x 5 | 2 |
 |
6 | 105241 | Bolzen | Ø 35 x 189 | 1 |
 |
7 | F27800 | Scheibe | Ø 11 x 30 x 25 x 4 | 6 |
 |
8 | F27693 | U-Scheibe | DIN125 A 10,5 | 8 |
 |
9 | F26379 | Spring lock washer | DIN127 B 10 | 14 |
 |
10 | F22138 | Sechskantschraube | DIN933 M10 x 25 | 8 |
 |
11 | F22141 | Zylinderschraube | DIN912 M10 x 25 | 6 |
 |
12 | 107981 | Arm | Ø 30 x 856 roh | 1 |
 |
13 | 107982 | Arm | Ø 30 x 856 roh | 1 |
 |
14 | F22133 | Bolzen | Ø 28 x 27,5 | 2 |
 |
15 | F22130 | Abdeckung | 445 x 196 x 20 x 3 | 1 |
 |
16 | 107733 | Winkel | 295 x 184,3 x 5 | 1 |
 |
17 | F26651 | Dichtung | 13 x 17 x 2700 roh | 1 |
 |
18 | 106919 | Getriebemotor | STSG 029-02/000 | 1 |
 |
19 | F20948 | Cable gland | M 16 x 1.5 | 1 |
 |
20 | F29058 | Cable gland | M 20 x 1.5 | 1 |
 |
21 | 108293 | Kabel für Deckelantrieb | MGR 400/900 | 1 |
 |
22 | 108351 | Kabel für Endschalter Deckel | MGR 400/900 | 1 |
