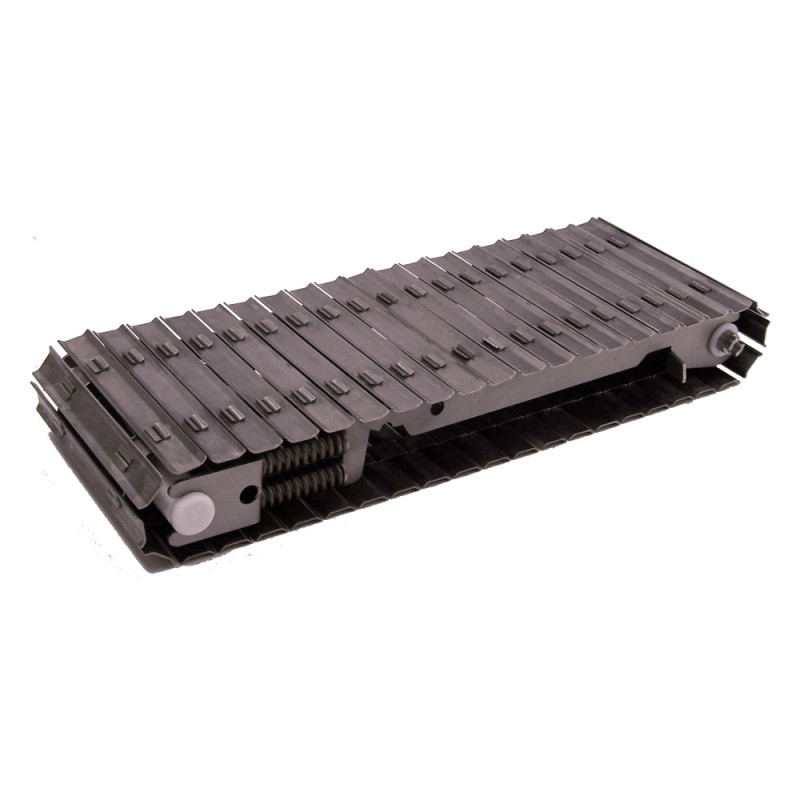

Conveyor Belt Assembly for PR8 Injection Machine
Pos No. | Part No. | Description | Add Info | Required | |
![]() |
2 | F21267 | Disc | Ø 18,5 x Ø 28 x 3 | 16 |
![]() |
3 | F27848 | Bushing | Ø 25,2 x Ø 40 x 79,5 | 2 |
![]() |
5 | F21278 | Pressure Spring | 5,0 x 29 x 90 | 4 |
![]() |
6 | F20071 | Shaft | Ø 25 x 250 | 1 |
![]() |
7 | F40166 | Disc | PR 8 - 15 | 24 |
![]() |
8 | F21281 | Hexagonal Bolt | DIN933 M 8 x 16 | 1 |
![]() |
9 | F21848 | Bushing | Ø 25,2 x Ø 40 x 57,5 | 1 |
![]() |
10 | F27700 | Bushing | Ø 25,2 x Ø 40 x 78,5 | 1 |
![]() |
11 | F20069 | Shaft | Ø 25 x 253 | 1 |
![]() |
12 | F41931 | Disc | PR 8 - 15 | 2 |
![]() |
13 | F40013 | Conveyor Belt | PR 8 - 15 | 1 |
