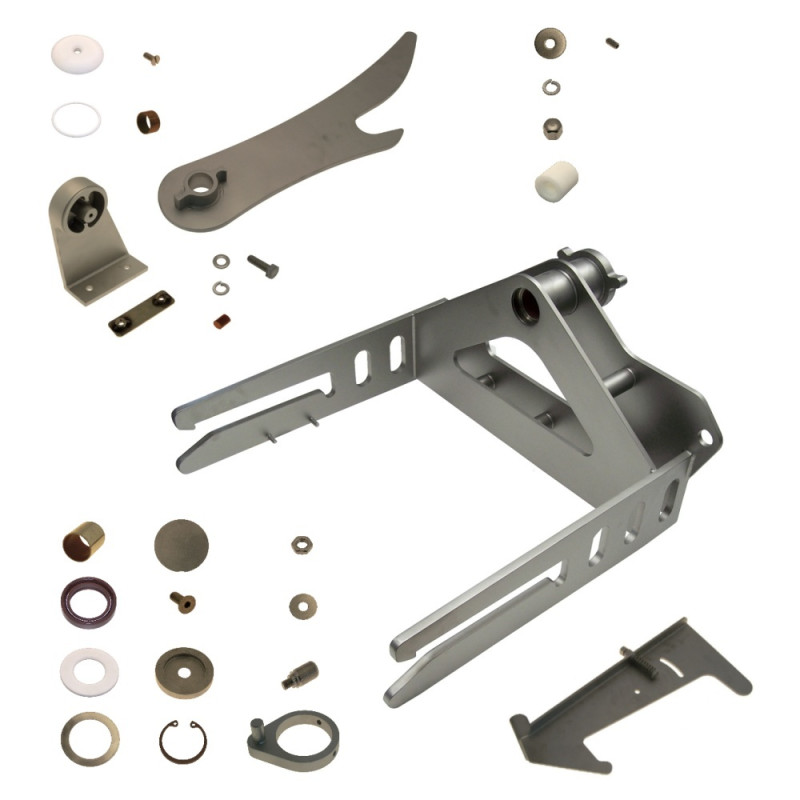

Cabin Complete Ruhle SR Dicer No. 70 and Higher

Type: F41348
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1053

Note: Shipping to be Determined.

* Cabin Complete SR3 Lifting unit for No. 70 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Cabin Complete Ruhle SR Dicer No. 70 and Higher

Type: F41348
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1053

Note: Shipping to be Determined.

* Cabin Complete SR3 Lifting unit for No. 70 and higher:
--F41921 Cabin
-- F244755 Slide bearing
--F25062 Radial shaft seal
--F28646 Ring
-- F26787 Ring
--F21717 Locking ring
-- F28652 Disc
--F20835 Countersunk bolt
--F26788 Lid
--F444857 Stop
-- F28659 bolt
--F26798 Disc
--F26720 Cap nut
--F445221 locking device
--F22907 Disc
-- F20811 Cap nut
--F26789 Shaft
--104751 Tilting device
--F20881 Threaded pin
--F245668 ring

Cabin Complete for Meat Dicer SR3 with no. 70 and higher

Pos No.	Part No.	Description	Add Info	Required
1	F41921	Cabin	SR 3	1
2	F244755	Slide bearing	DIN1850 - J60 x 65 x 70	2
3	F25062	Radial shaft seal	Ø 60 x Ø 80 x 7	1
4	F28646	Ring	Ø 60,2 x Ø 114 x 5	1
5	F26787	Ring	Ø 50,2 x Ø 70 x 4	1
6	F21717	Locking ring	DIN471 Ø 50 x 2	1
7	F28652	Disc	Ø 13 x Ø 70 x 8	1
8	F20835	Countersunk bolt	DIN7991 M10 x 25	1
9	F26788	Lid	Ø 71,8 x 5	1
10	F444857	Stop	SR 3	1
11	F28659	bolt	Ø 40 x 90	1
12	F26798	Disc	Ø 20,5 x Ø 60 x 5	1
13	F26720	Hexagonal nut	DIN917 M 20	1
14	F445221	locking device	SR 3	1
15	F22907	Disc	Ø 10,5 x Ø 35 x 3	2
16	F20811	Cap nut	DIN917 M 10	2
17	F26789	Shaft	Ø 50 x 57	2
18	104751	Tilting device	SR 3	1
19	F20881	Threaded pin	DIN914 M 10 x 20	2
20	F245668	ring	Ø 10,5 x Ø 27 x 3	2

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Cabin Complete for Meat Dicer SR3 with no. 70 and higher

Pos No.	Part No.	Description	Add Info	Required
1	F41921	Cabin	SR 3	1
2	F244755	Slide bearing	DIN1850 - J60 x 65 x 70	2
3	F25062	Radial shaft seal	Ø 60 x Ø 80 x 7	1
4	F28646	Ring	Ø 60,2 x Ø 114 x 5	1
5	F26787	Ring	Ø 50,2 x Ø 70 x 4	1
6	F21717	Locking ring	DIN471 Ø 50 x 2	1
7	F28652	Disc	Ø 13 x Ø 70 x 8	1
8	F20835	Countersunk bolt	DIN7991 M10 x 25	1
9	F26788	Lid	Ø 71,8 x 5	1
10	F444857	Stop	SR 3	1
11	F28659	bolt	Ø 40 x 90	1
12	F26798	Disc	Ø 20,5 x Ø 60 x 5	1
13	F26720	Hexagonal nut	DIN917 M 20	1
14	F445221	locking device	SR 3	1
15	F22907	Disc	Ø 10,5 x Ø 35 x 3	2
16	F20811	Cap nut	DIN917 M 10	2
17	F26789	Shaft	Ø 50 x 57	2
18	104751	Tilting device	SR 3	1
19	F20881	Threaded pin	DIN914 M 10 x 20	2
20	F245668	ring	Ø 10,5 x Ø 27 x 3	2
